RST-125-S02 - Datasheet
MBA
Category Information
Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless SteelStainless Steel Medium-Heavy Spiral Rings External Retaining Rings. AME / WST / RST - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
- This two/three turn design is easier to install than the heavy duty RRN option.
- Equivalent to Associated Spring: AME, Smalley: WST, Spirolox and Ramsey: RST
Product Data

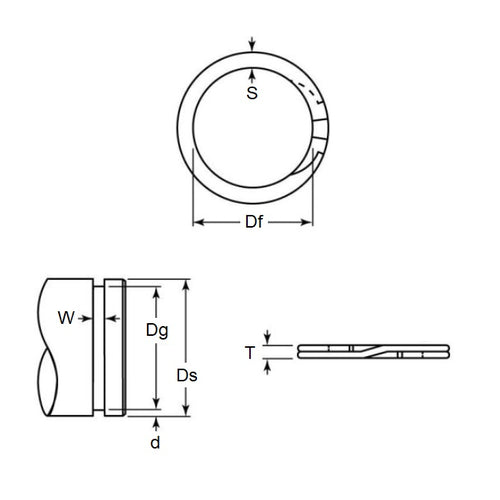

- Shaft Diameter (Ds)
:
31.75
mm
(Equiv. 1.25 in.) - Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.) - Groove Dia. (Dg)
30.35
mm
(Equiv. 1.195 in.) - Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38
- Radial Wall (S) min/max 2.36 mm +/- 0.10
- Groove Width (W) 1.47 mm +/- 0.10
- Approx. Loose Clip OD 34.57 +/- 0.05
- Groove Depth (d) 0.71
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Smalley WST-125-S02
- WST125S02
