Miniature Bearings Australia
BL-03175-PTF - Datasheet
MBA
Category Information
Balls - Plastic - PTFEPTFE Plastic Balls. No water absorption. Temperatures up to 288 Deg C. Not affected by any known acids or alkalies.
- Plastic ball grades are not the same as those for precision balls
- Polytetrafluoroethylene
- Unpolished.
- Specific Gravity: 2.3.
Product Data

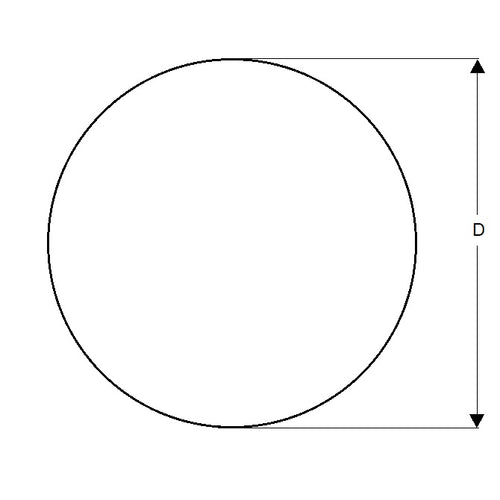

- Diameter (D)
:
31.75
mm
+/- 0.127
(Equiv. 1.25 in.) - Material PTFE
- Precision Grade 2
- Hardness 68 Rockwell R
- Properties No water absorption. Temperatures up to 288 Deg C.
- Colour White
- Specific Gravity 2.3
- Material PTFE
Product Compliance and Data
Additional Resources
Cross References
- 9660K51
