WMG420RS - Datasheet

MBA

Category Information

Pins - Hydraulic Cylinder

Hydraulic Cylinder Pins. This is the main category in this series

    Product Data

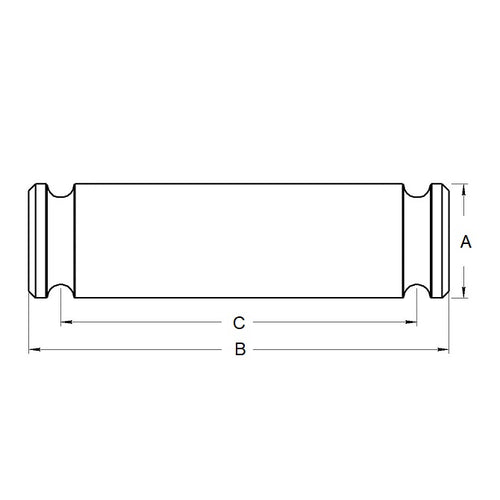

    • Pin Diameter (A) : 31.750 mm
      (Equiv. 1.25 in.)
    • Overall Length (B) 98.425 mm
      (Equiv. 3.875 in.)
    • Groove Distance (C) 82.550 mm
      (Equiv. 3.25 in.)
    • Material Steel C1144
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • WMG420
    • WMG-420
    View full details

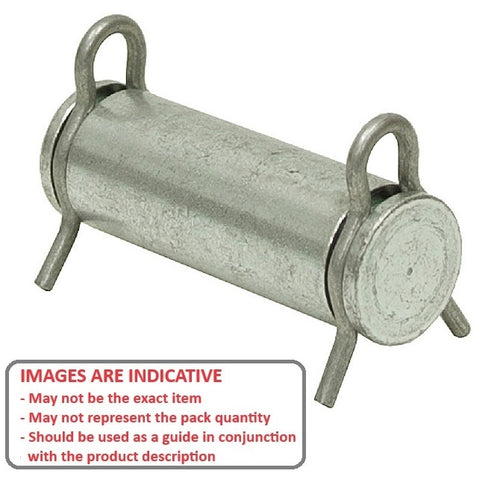

    WMG420RSDiagramWMG420RSImage
