COL-03175-055-46-GF-AB - Datasheet
MBA
Category Information

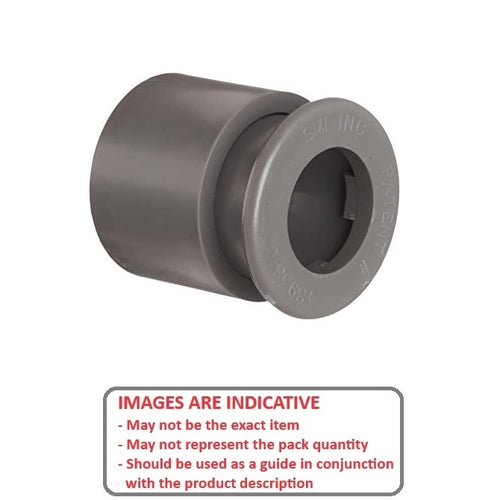

Collars - Shaft - Gripfast - ABS PlasticABS Plastic Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 265 kg Load Capacity (600 lbs).
- ABS Plastic Inner Body and Outer Sleeve.
- Steel Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d) : 31.750 mm
- Outside Diameter (D) 55.00 mm
- Overall Width (S) 46.4 mm
- Material ABS Plastic
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SMI-1250
- SMI1250
- A7Z34-1250SC
- A7Z341250SC
