VT114RS - Datasheet
MBA
Category Information

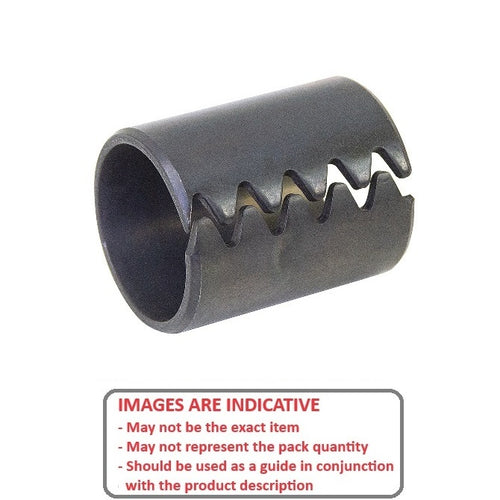

Bushings - TensionTension Bushings. Like a heavy duty roll pin.
- Made of a high carbon spring steel with high elasticity, resilience and wear characteristics.
- Designed to replace solid steel tubular and case hardened bushings because they are close tolerance, self-retaining and through hard.
- Insertion can be easily accomplished with a hammer and drift.
- Ideal for high load/low-speed operation in articulating or continuous applications.
Product Data

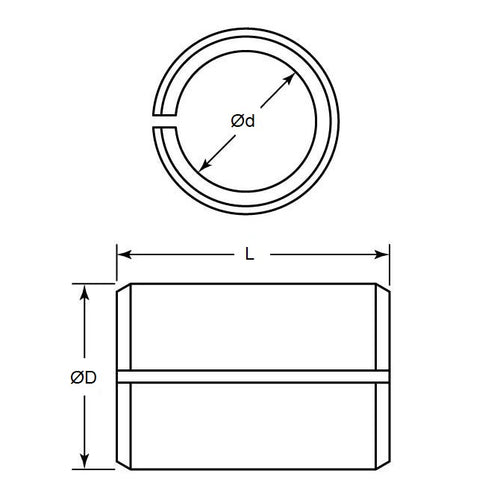

- Inside Diameter (ID)
:
31.750
mm
(Equiv. 1.25 in.) - Outside Diameter (OD)
38.100
mm
(Equiv. 1.5 in.) - Length (L)
38.100
mm
(Equiv. 1.5 in.) - ID after insertion 31.83 - 31.93 mm
- OD before insertion 38.61 - 39.12 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 58365K18
- VT114
- VT114Qt6DC0826141
- VT-114
- VT-114-Qt-6DC.082614.1
