FRB-34RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Male Thread - Standard

Standard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers

    Product Data

    • Diameter (A) : 31.750 mm
      (Equiv. 1.25 in.)
    • Height (B) 31.750 mm
      (Equiv. 1.25 in.)
    • Thread 3/8-16 UNC (9.53mm)x 5/8
    • Thread Length 15.875 mm
    • End Curved
    • Durometer 45A
    • Colour Black
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details

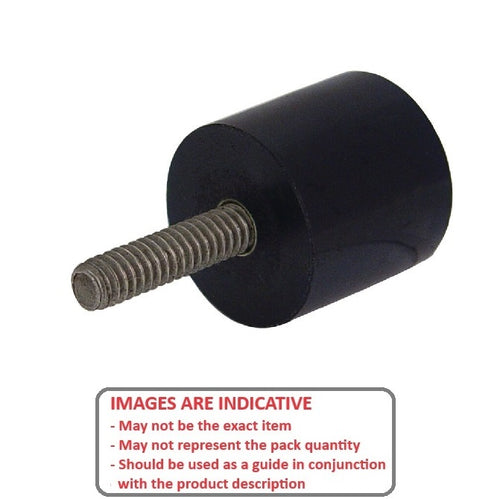

      FRB-34RSDiagramFRB-34RSImage
