SLQ-3175-5715-12700-H - Datasheet
MBA
Category Information

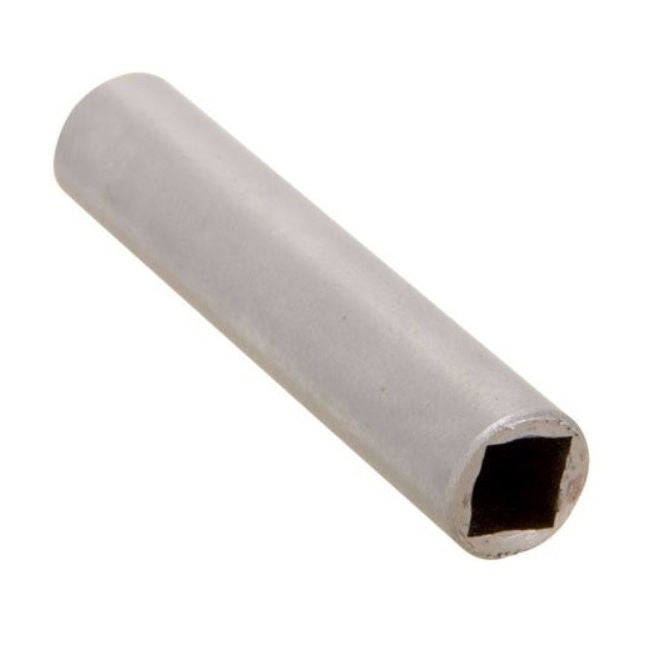

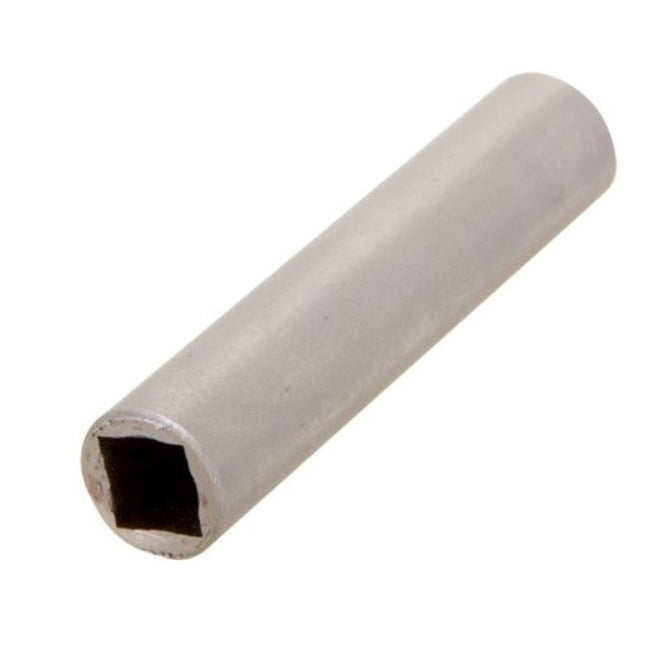

Sleeves - Square Hole - Plain - HardenedHardened Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in). Pre-hardened to Rockwell 23-30C.
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
31.750
mm
+/- 0.0254
(Equiv. 1.25 in.) - Outside Diameter (C)
57.150
mm
(Equiv. 2.25 in.) - Length (B)
127.000
mm
(Equiv. 5 in.) - Actual Square Size (A) 32.004 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- SHS1250
- SHS-1250
