FRB-336RS - Datasheet
MBA
Category Information

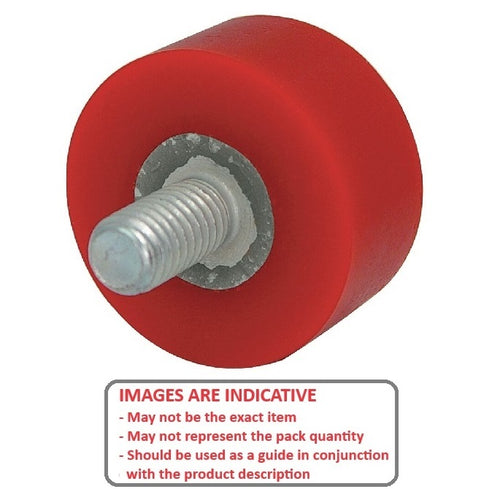

Bumpers - Cylindrical Male Thread - StandardStandard Cylindrical Male Thread Bumpers. Also see Mounts - Buffers
- Rubber body and a threaded metal stud, designed to absorb impact, dampen vibrations, and reduce noise.
- The male thread allows for easy installation by screwing directly into a pre-tapped hole or by securing a nut on the opposite side of the surface.
- These are used in applications like machinery, vehicles, and industrial equipment to protect surfaces and components from damage.
Product Data
- Diameter (A)
:
31.750
mm
(Equiv. 1.25 in.) - Height (B)
31.750
mm
(Equiv. 1.25 in.) - Thread 3/8-16 UNC (9.53mm) x 1.1/4
- Thread Length 19.050 mm
- End Curved
- Durometer 45A
- Colour Black
- Material Polyurethane
