Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

FRB-214RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

    • Diameter (A) : 31.750 mm
      (Equiv. 1.25 in.)
    • Height (B) 31.750 mm
      (Equiv. 1.25 in.)
    • Thread 7/16-20 UNC (11.11mm)
    • Thread Length 12.700 mm
    • End Curved
    • Durometer 70A
    • Colour Black
    • 19.050
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 9546K81
      View full details

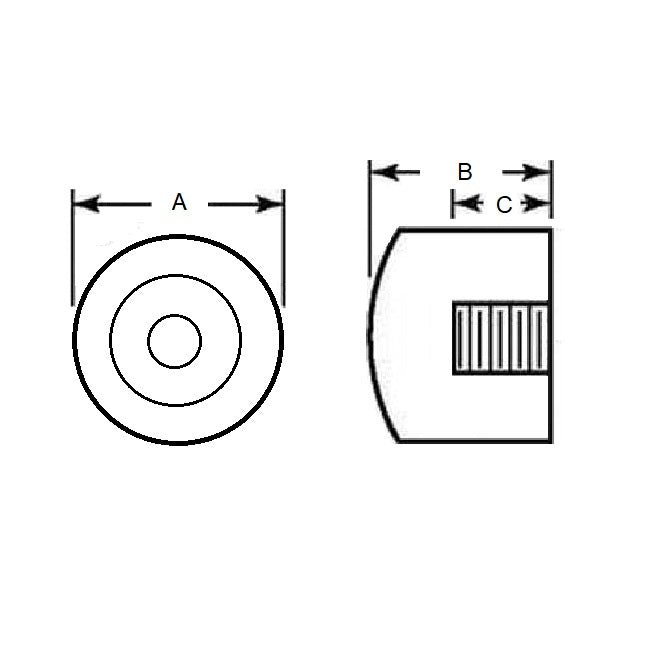

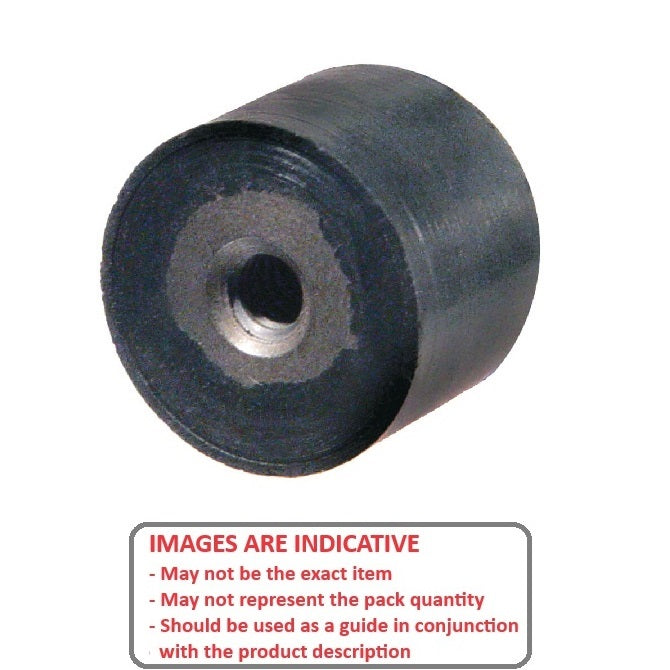

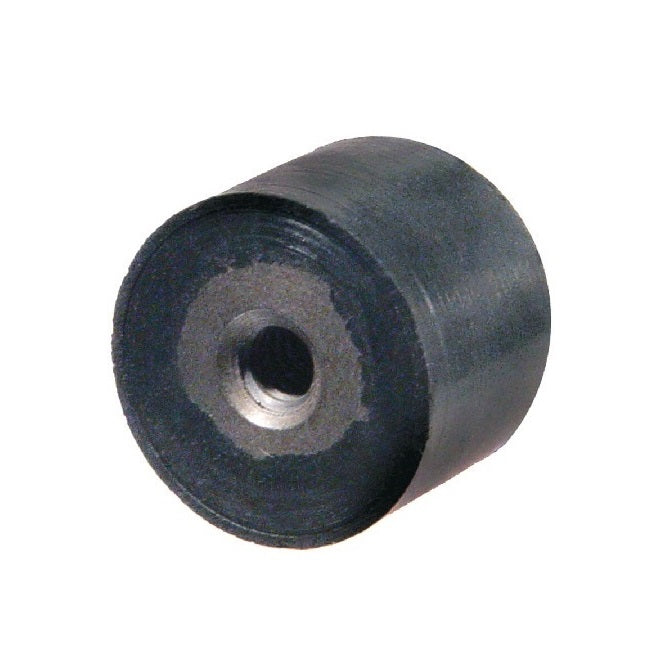

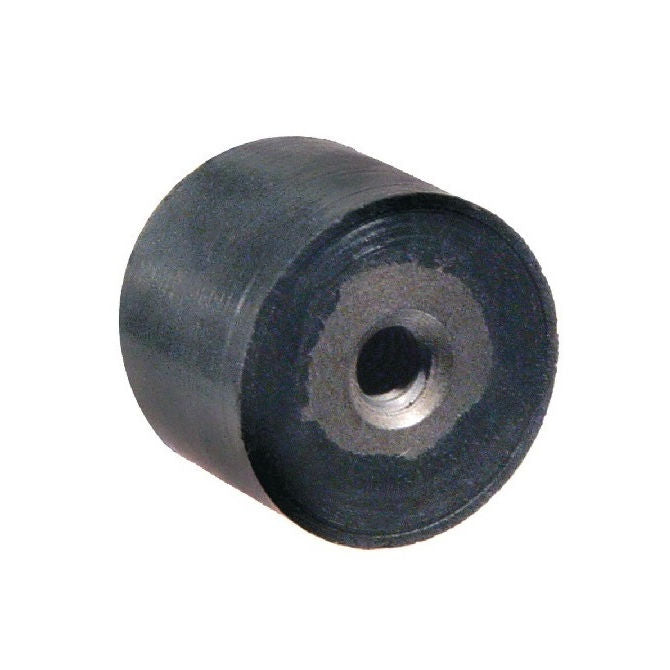

      FRB-214RSDiagramFRB-214RSImage
