FRB-8RS - Datasheet
MBA
Category Information

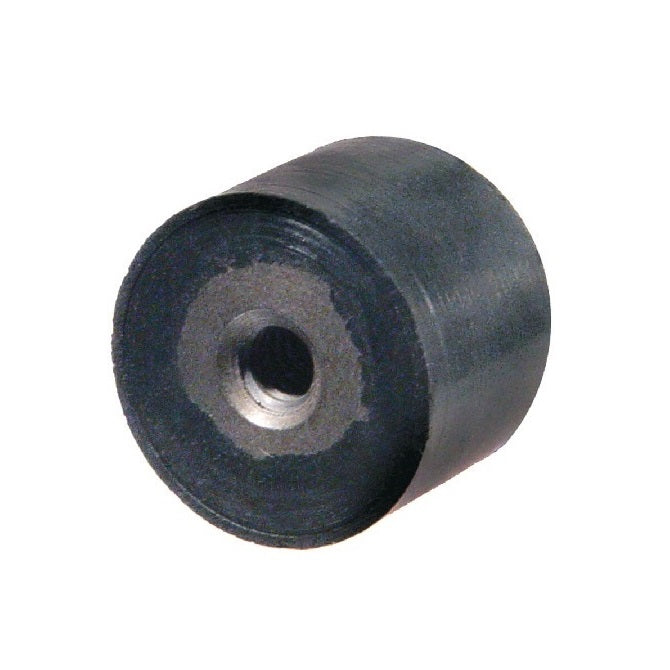

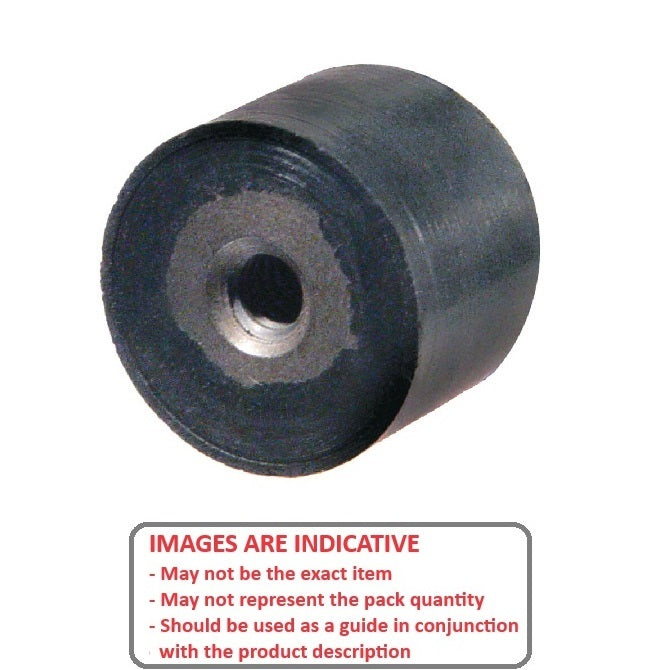

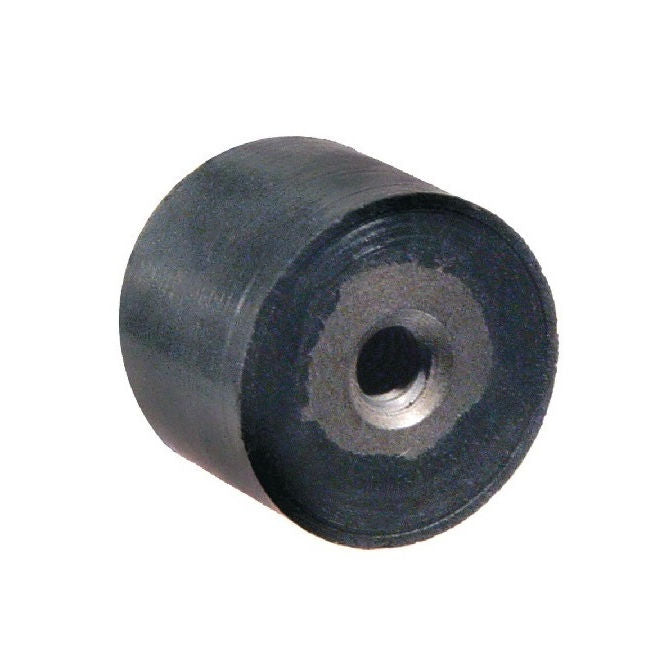

Bumpers - Cylindrical Female ThreadCylindrical Female Thread Bumpers. With steel core.
- Vibration-damping component with a female (internal) threaded hole, which screws onto a bolt or screw to be securely attached.
- Used to protect equipment by absorbing shock, reducing noise, preventing sliding, and minimizing vibration in mechanical, industrial, and automotive applications.
Product Data

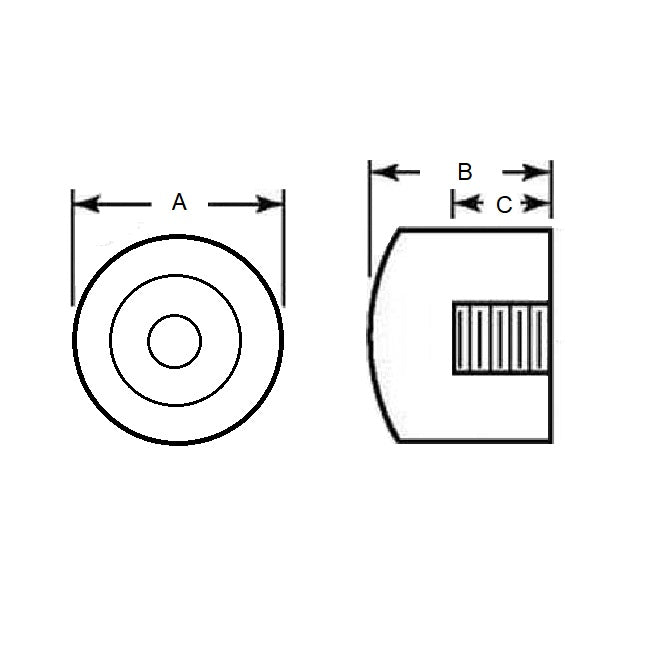

- Diameter (A) : 31.750 mm
- Height (B) 31.750 mm
- Thread 3/8-24 UNF (9.53mm)
- Thread Length 12.700 mm
- End Curved
- Durometer 70A
- Colour Black
- 19.050
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 9546K24
