FRB-6RS - Datasheet

MBA

Category Information

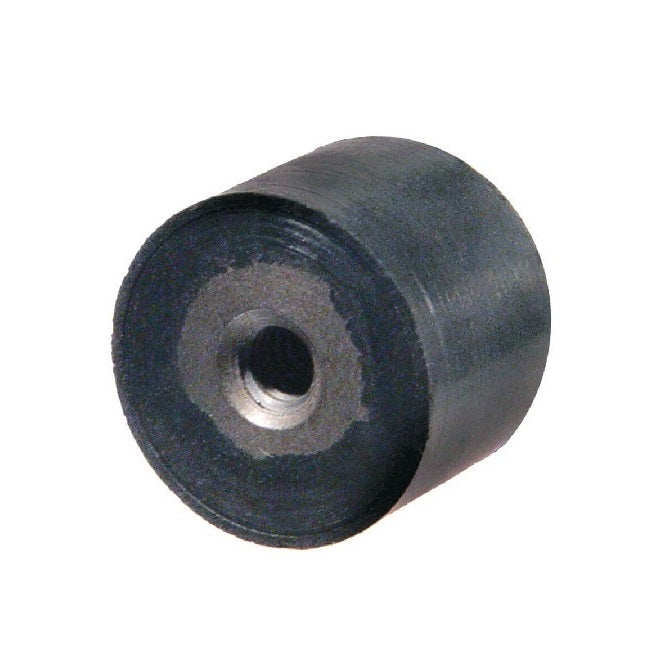

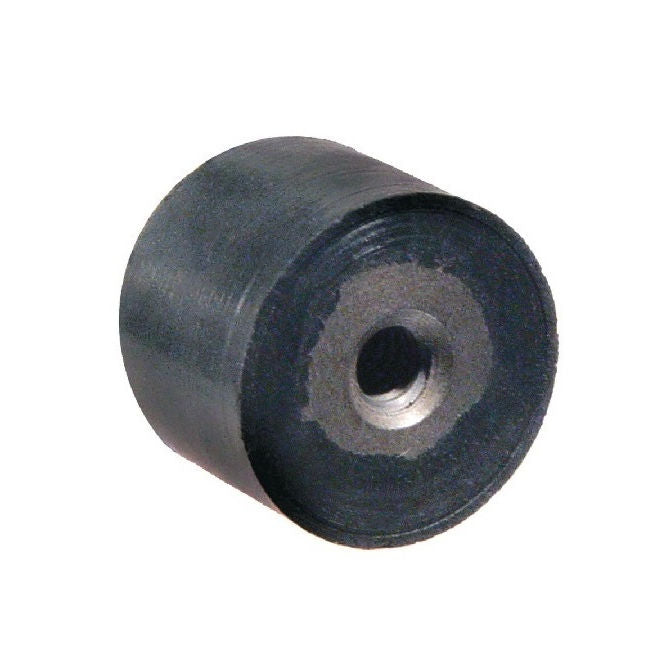

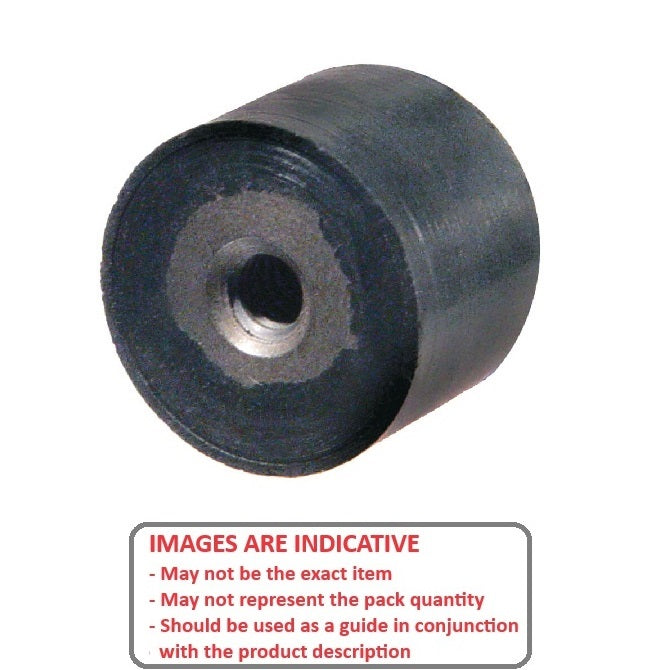

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

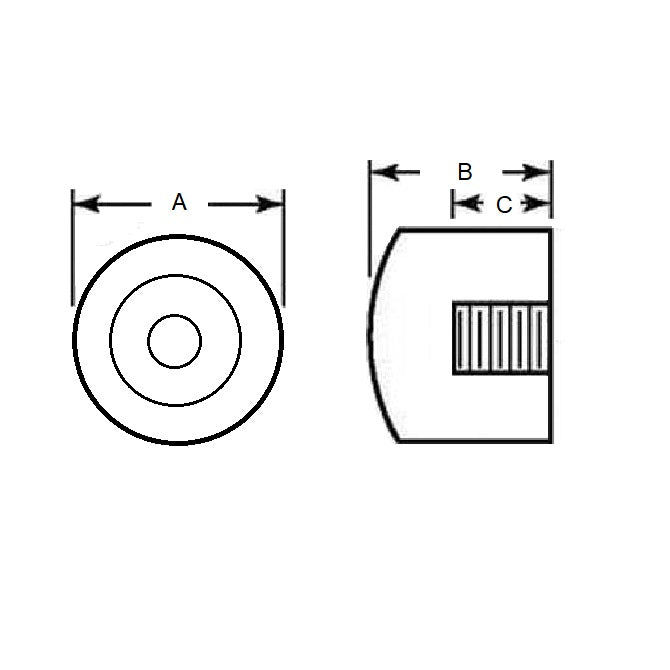

    • Diameter (A) : 31.750 mm
      (Equiv. 1.25 in.)
    • Height (B) 31.750 mm
      (Equiv. 1.25 in.)
    • Thread 3/8-16 UNC (9.53mm)
    • Thread Length 12.700 mm
    • End Curved
    • Durometer 70A
    • Colour Black
    • 19.050
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 9546K23
      View full details
      FRB-6RSDiagramFRB-6RSImage
