AU-961RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

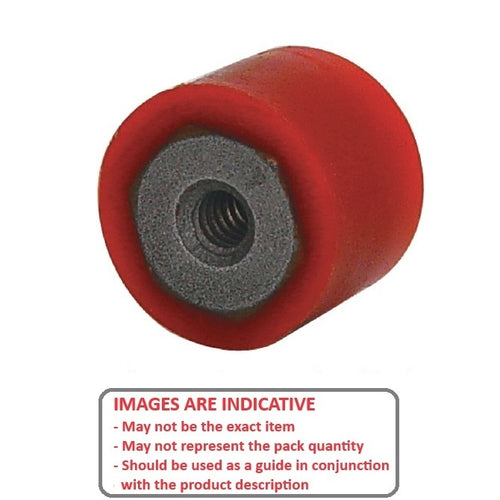

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

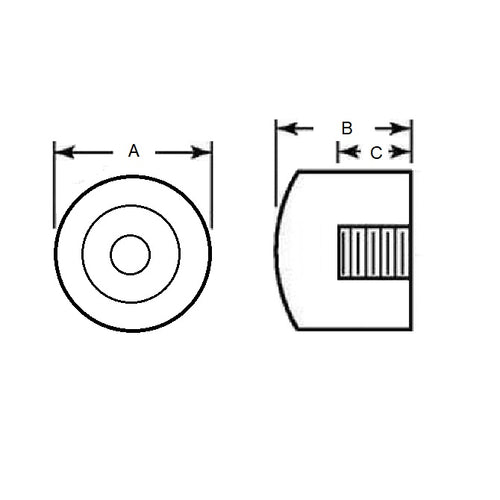

    • Diameter (A) : 31.750 mm
      (Equiv. 1.25 in.)
    • Height (B) 25.400 mm
      (Equiv. 1 in.)
    • Thread 1/4-20 UNC (6.35mm)
    • End Flat
    • Durometer 95A
    • Colour Red
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      View full details
      AU-961RSDiagramAU-961RSImage
