IP-250RS - Datasheet
MBA
Category Information

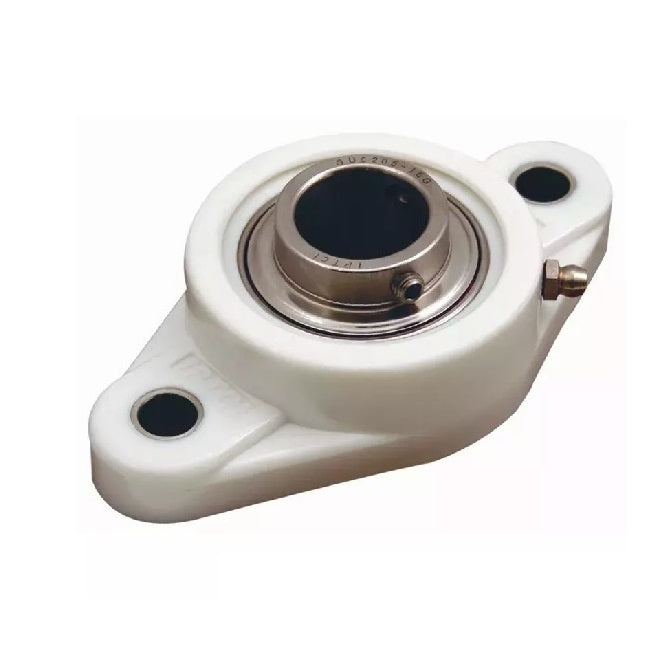

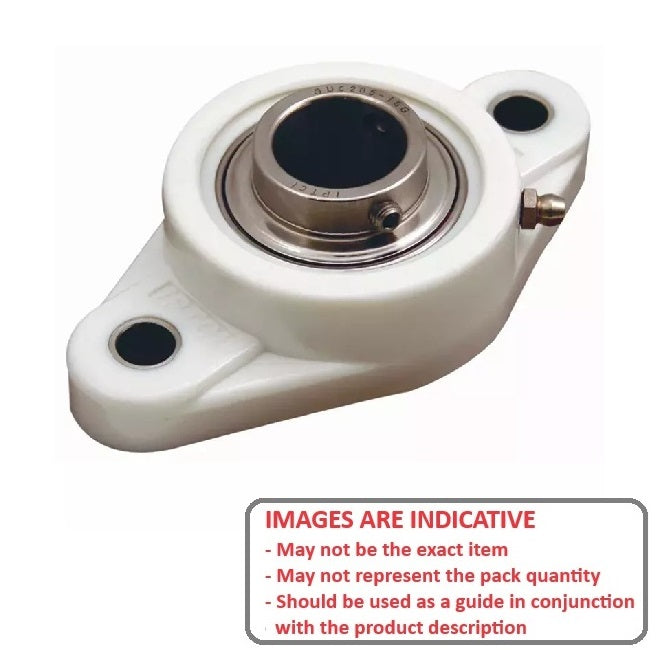

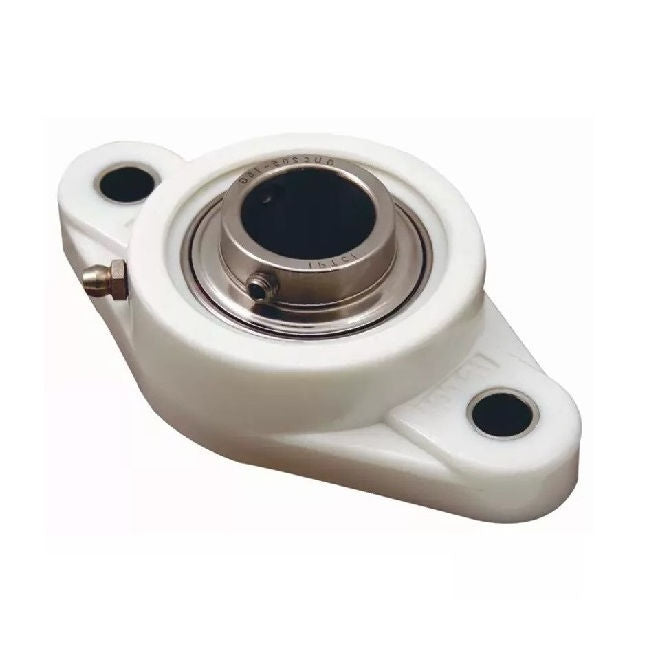

Housing Assembly - Flanged 2 Bolt - Non Aligning - Plastic and Chrome SteelPlastic and Chrome Steel Non Aligning Flanged 2 Bolt Housing Assembly. Thermoplastic housed units offer a more favourable economic choice. Hard chrome inserts offer an intermediate level of corrosion resistance.
- An expanded range may be available on special order. Please enquire.
- Operating temperature minus 20 oC to +95 deg C
- Thermoplastic hosuings are offwhite and are made from glass reinforced PBT resin. Favourable chemical resistance. Very resistant to moisture absorption.
- Excellent mechanical, thermal and electrical properties.
- All sleeves, bushings and grease fittings are 300 grade stainless steel.
Product Data

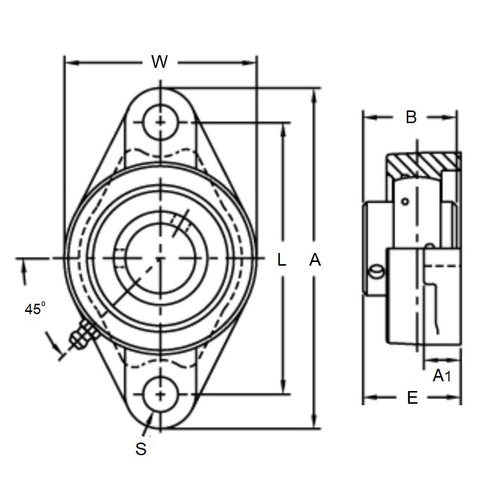

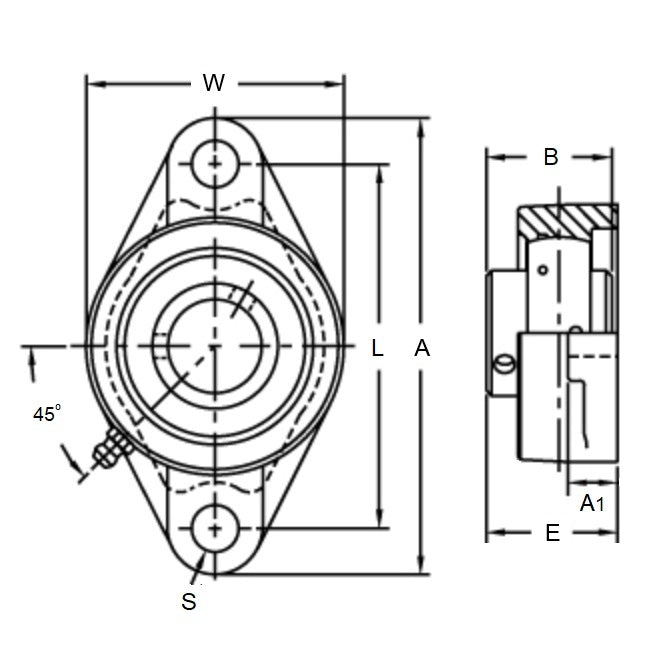

- Nominal Shaft Size
:
31.75
mm
(Equiv. 1.25 in.) - Width (W)
40.878
mm
(Equiv. 1.609 in.) - Overall Length (A)
147.638
mm
(Equiv. 5.813 in.) - Overall Height (E) 40.878 mm
- Base Height (D) 13.494 mm
- Material Thermoplastic and Chrome Steel
