LCHP-0318-071-CC - Datasheet
MBA
Category Information

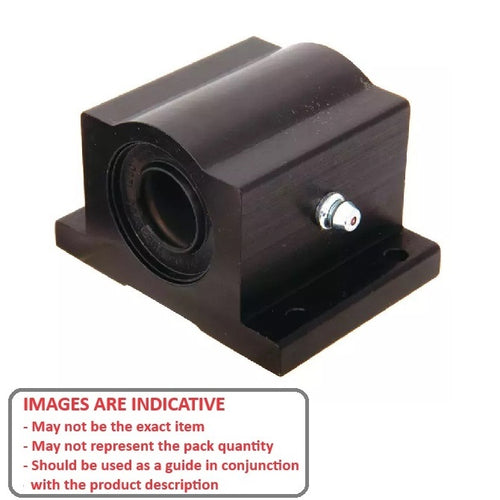

Linear - Housings Pillow Block Closed Ceramic CoatedHousings Pillow Block Closed Ceramic Coated Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- DO NOT USE WD-40 or Silcone based spray lubricants.
Product Data

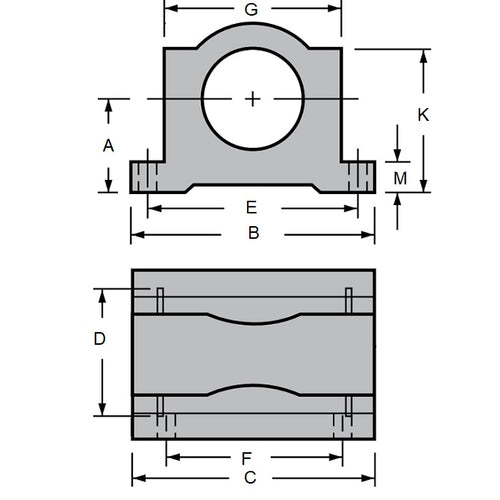

- Nominal Diameter
:
31.75
mm
(Equiv. 1.25 in.) - Widths (B x C)
101.60 x 92.08
mm
(Equiv. 4 in.) - Length (D)
71.44
mm
(Equiv. 2.813 in.) - Bolt Distances (E x F) 88.90 x 50.80 mm
- Bolt Hole Size 5.56 mm
- Height (K) 63.50 mm
- Centre Height (A) 38.10 mm
- G 76.20 mm
- M 11.11 mm
- Max Static Load Capacity 7446.63 kg
Product Compliance and Data
Additional Resources
Cross References
- 6674K17
- LMB325
- LMB-325
