SLH-3175-5715-12700-H - Datasheet
MBA
Category Information

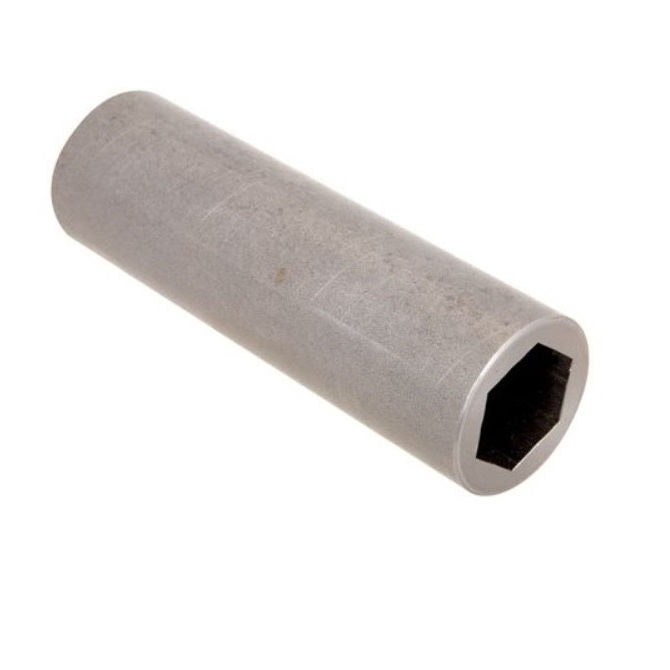

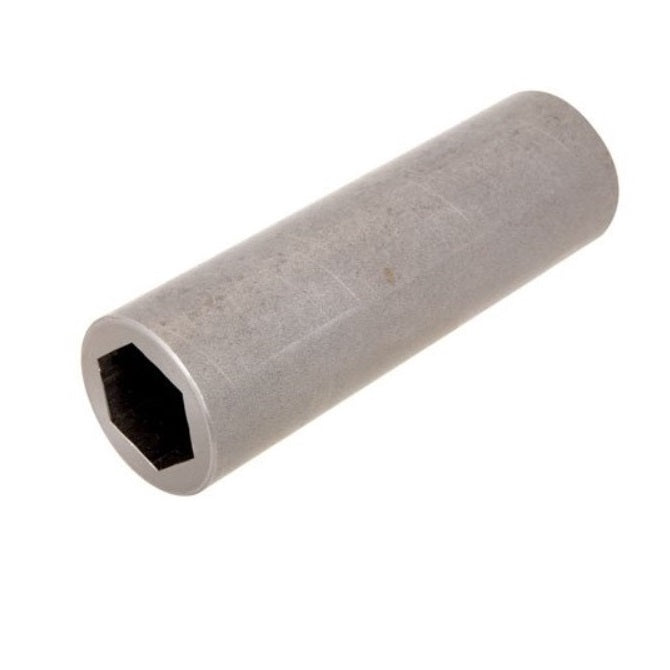

Sleeves - Hex Hole - HardenedHardened Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD. Pre-hardened to Rockwell 23-30C.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data
- Nominal Hex Size
:
31.75
mm
(Equiv. 1.25 in.) - Outside Diameter (OD)
57.150
mm
(Equiv. 2.25 in.) - Length (L)
127.000
mm
(Equiv. 5 in.) - Actual Hex Size (H) 31.877 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- HHS-124
- HHS124
