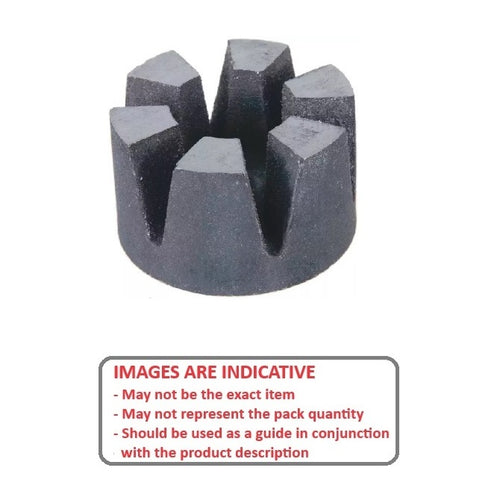

MAG-SPR-32-005-AN - Datasheet
MBA
Category Information
Magnets - Side Pole Rotator AlnicoSide Pole Rotator Alnico Magnets. This is the main category in this series
- Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
- Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
- While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.
Product Data

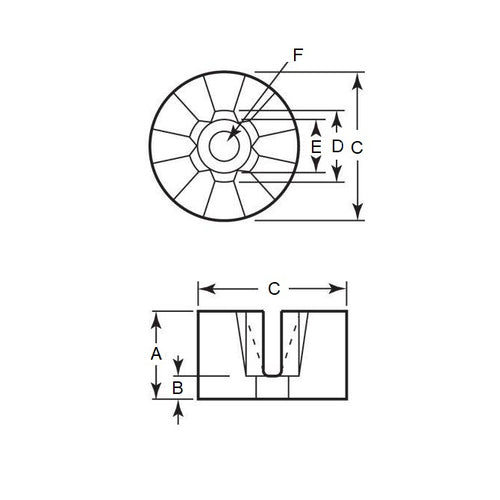

- Diameter (C)
:
31.75
mm
(Equiv. 1.25 in.) - Alnico Grade 5
- Poles 6
- D 15.88 mm
- A 19.05 mm
- B 5.56 mm
- F 6.35 mm
- Holding Force 13.39 kg
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® MAG-947
- MAG947
