CLP-318-1778-CZ-H - Datasheet
MBA
Category Information

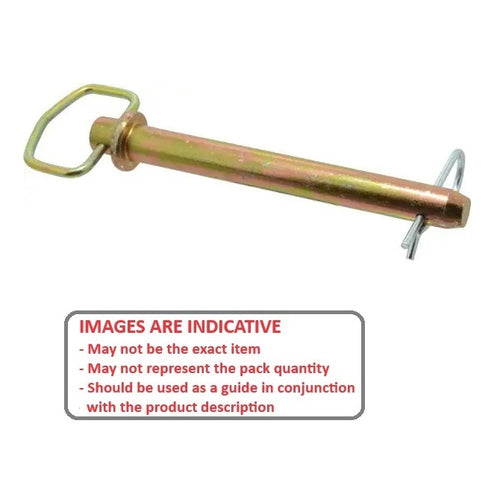

Pins - Clevis - Handle - Straight - Pin Locking - PlainPlain Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
- A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
- Includes zinc plated R-Clip
Product Data

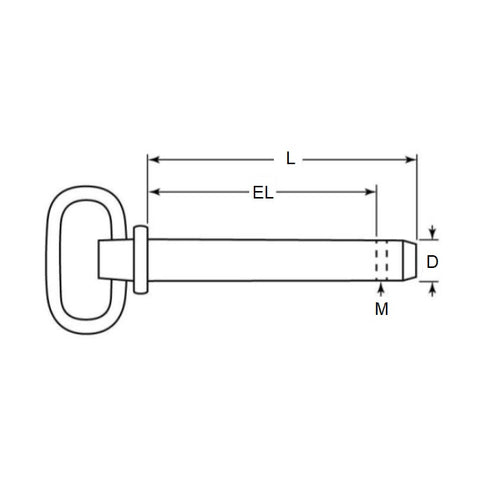

- Nominal Pin Diameter (D)
:
31.75
mm
- 0.10 / - 0.35
(Equiv. 1.25 in.) - Grip Length (EL)
177.80
mm
+ 0.51 / - 0.00
(Equiv. 7 in.) - Pin Finish Zinc Plated
- Handle Finish Zinc Plated
- Handle Material Heat treated Steel
- Material Carbon Steel Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- CLP3181778ZH
- CLP-563
- CLP563
