MAG-CP-032-05-06-H-A - Datasheet
MBA
Category Information

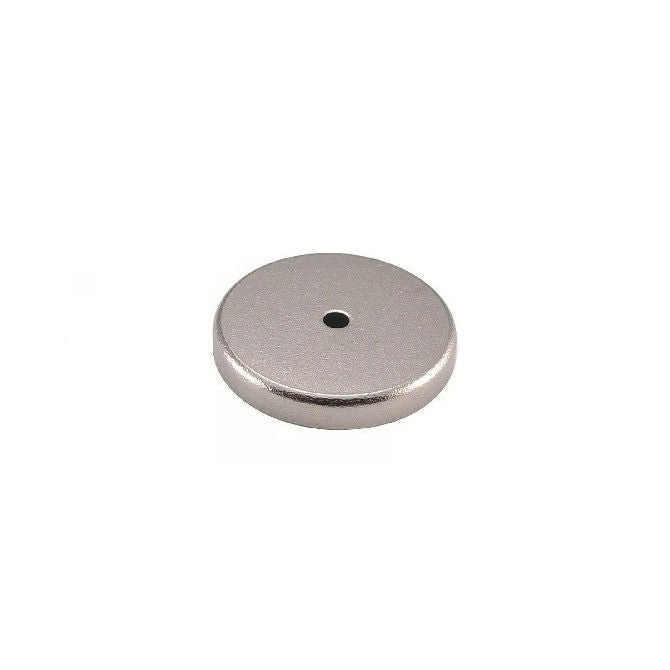

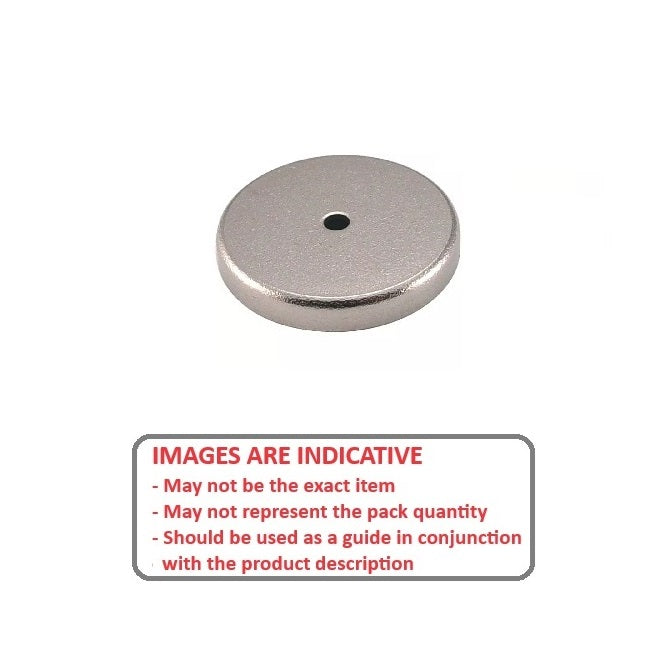

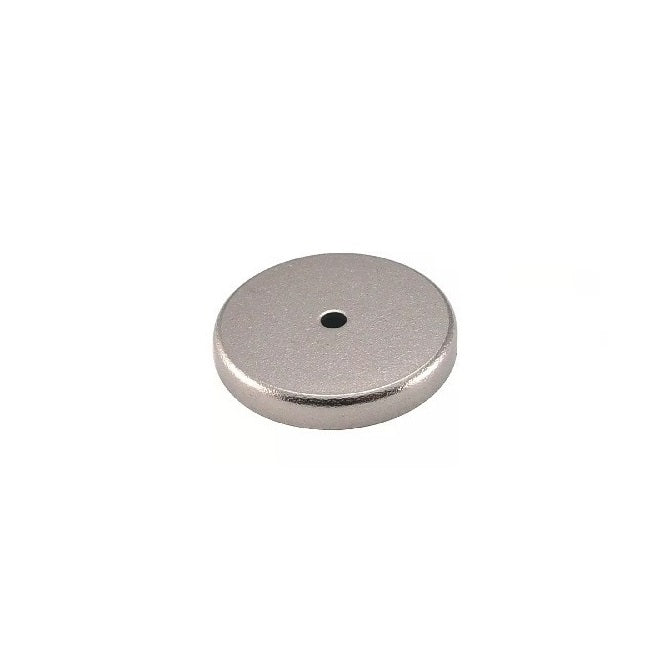

Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

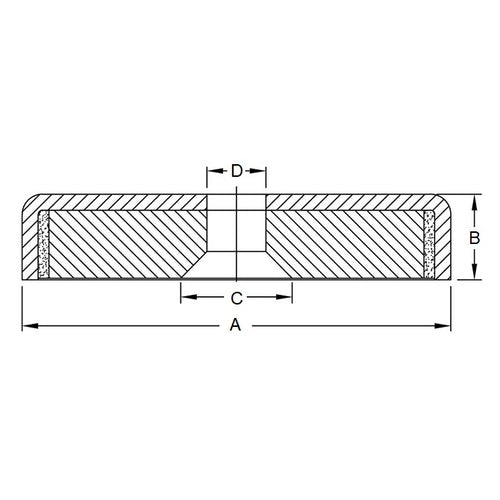

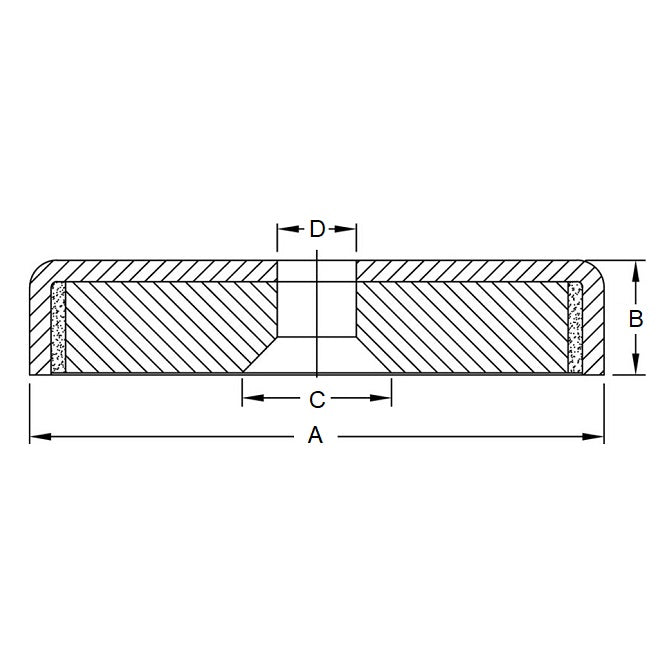

- Diameter (A)
:
31.50
mm
(Equiv. 1.24 in.) - Thickness (B)
4.76
mm
(Equiv. 0.187 in.) - Hole Recess (C)
6.35
mm
(Equiv. 0.25 in.) - Hole Top Diameter (D) 3.18 mm
- Holding Value 32 Kg
Product Compliance and Data
Additional Resources
Cross References
- IM-330
- IM330
