MAG-CP-031-05-06-SD - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Stud

Cup Assemblies Stud Magnets. This is the main category in this series

    Product Data

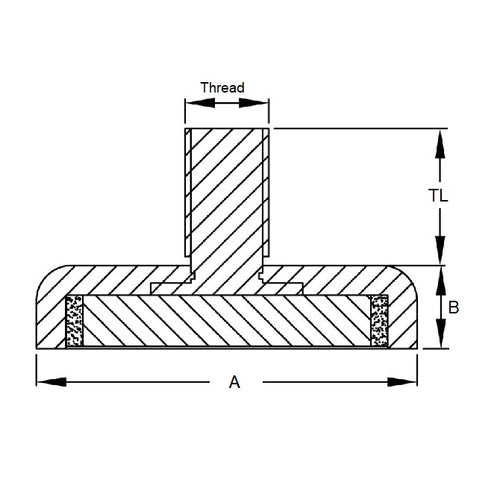

    • Diameter (A) : 31.35 mm
      (Equiv. 1.234 in.)
    • Thickness (B) 4.76 mm
      (Equiv. 0.187 in.)
    • Thread Size 6-32 UNC
    • Thread Length 25.40 mm
    • Holding Value 6.35 kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-50
      • IM50
      View full details

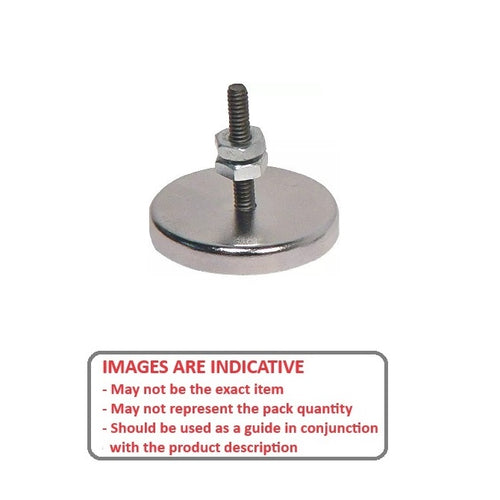

      MAG-CP-031-05-06-SDDiagramMAG-CP-031-05-06-SDImage
