P-030G-030-090FF-AL-E-064 - Datasheet

MBA

Category Information

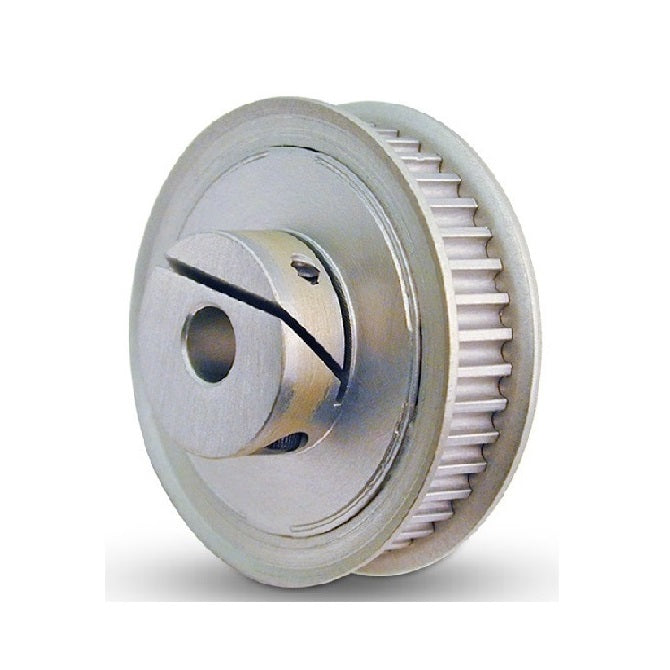

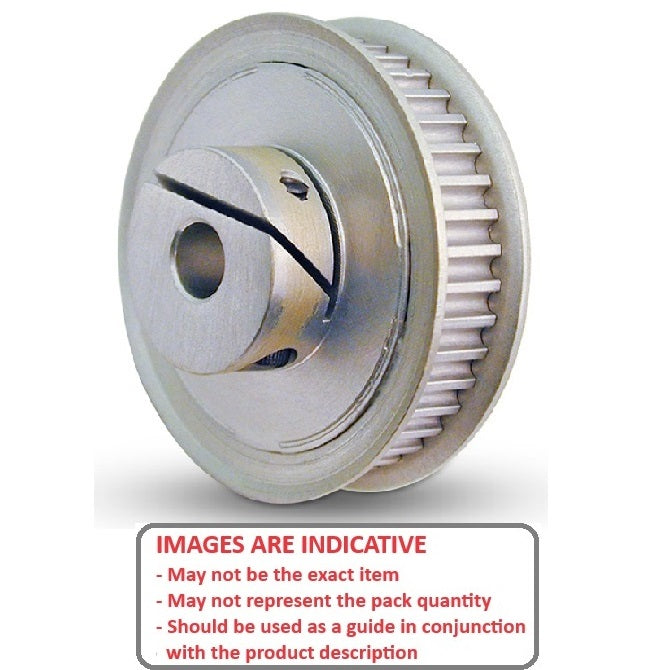

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - EZ-Lock

EZ-Lock Metallic 9mm Wide GT 3.000mm Pitch Metric Timing. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • EZ-Lock hub clamps to the shaft with a socket head cap screw
  • Cap screw is supplied with the pulley

Product Data

  • Number of Teeth : 30
  • Max Belt Width 9.00 mm
    (Equiv. 0.354 in.)
  • Bore (d) 6.350 mm
    (Equiv. 0.25 in.)
  • Bore Type Finished
  • Locking Type EZ-Lock Hub

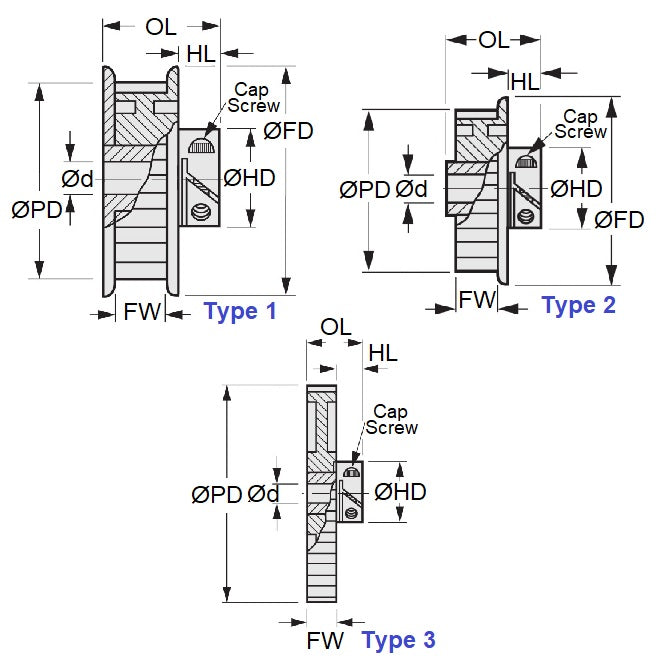

  • Type 2
  • Pitch Dia. (PD) 28.64 mm
  • Flange Diameter (FD) 31.8 mm
  • Overall Length 20.6 mm
  • Hub Diameter (HD) 19.5
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • A6D53030DF0908
  • A6D53-030DF0908
