NRV-0300-080-W-ZZ - Datasheet

MBA

Category Information

Rollers - Nylon Tyre Through Bore Convex

Nylon Tyre Through Bore Convex Rollers. Nylon tyred rollers for cabinet doors, gym equipment etc. Commonly found in rowing machines.

    Product Data

    Nylon tyre OD for popular exercise rower machines

    • Outside Diameter (A) : 30.00 mm +/- 0.2
      (Equiv. 1.181 in.)
    • Inside Diameter (B) 8.00 mm + 0 / - 0.008
      (Equiv. 0.315 in.)
    • Bearing Width (E) 7.0 mm
      (Equiv. 0.276 in.)
    • Roller Width (C) 8.6 mm
    • Tyre Radius 4.5 mm
    • Weight 10 g
    • Load Capacity 35 kg
    • Colour White
    • Type No Extended Rings on Bearing
    • Material Chrome Steel and Acetal
    Country of Origin: TW

    Product Compliance and Data

    Additional Resources

      Cross References

      • NRV0300080ZZ
      View full details

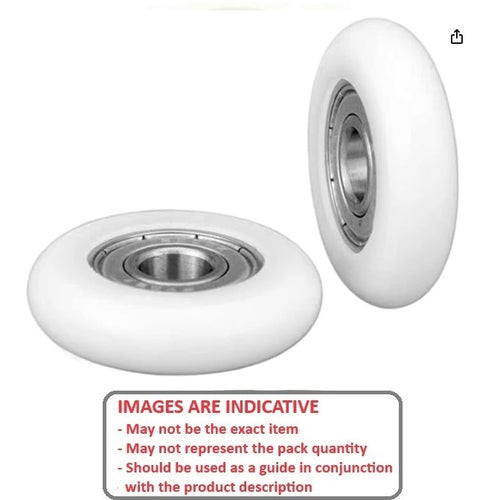

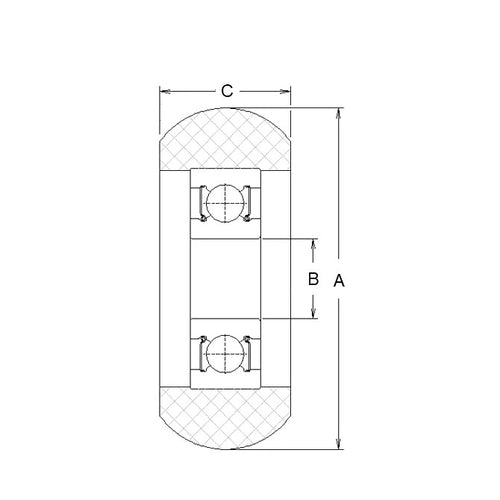

      NRV-0300-080-W-ZZDiagramNRV-0300-080-W-ZZImage
