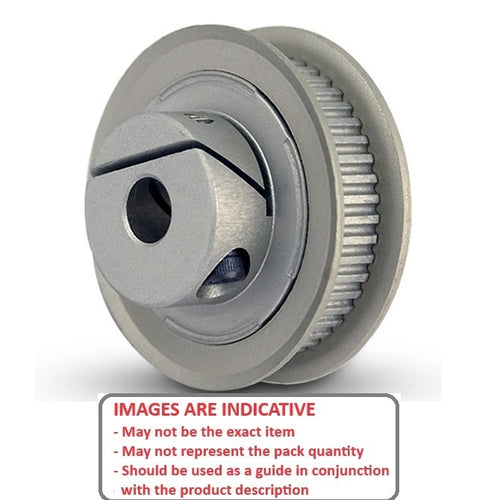

P-020G-030-060FF-AL-E-064 - Datasheet

MBA

Category Information

Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - EZ-Lock

EZ-Lock 6mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • EZI-LOK Hub Clamps together wit a Socket Head Cap Screw
  • Socket Cap Screw is Supplied with Pulley

Product Data

  • Number of Teeth : 30
  • Max Belt Width 6.00 mm
    (Equiv. 0.236 in.)
  • Bore (d) 6.350 mm
    (Equiv. 0.25 in.)
  • Bore Type Finished
  • Locking Type EZ-Lock Hub

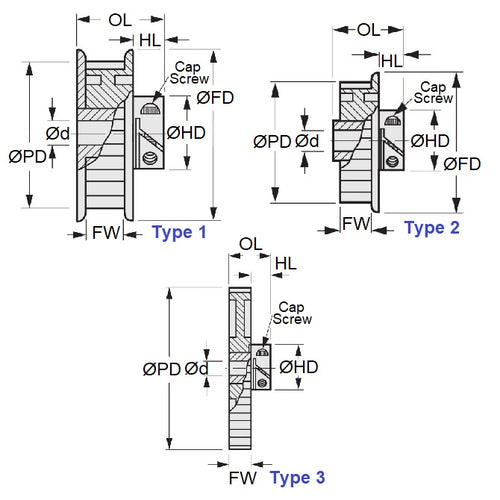

  • Type 2
  • Pitch Dia. (PD) 19.09 mm
  • Flange Diameter (FD) 24.0 mm
  • Overall Length 17.5 mm
  • Hub Diameter (HD) 15.9
  • Material Aluminium
Country of Origin: US
