P-H-030-250C - Datasheet
MBA
Category Information

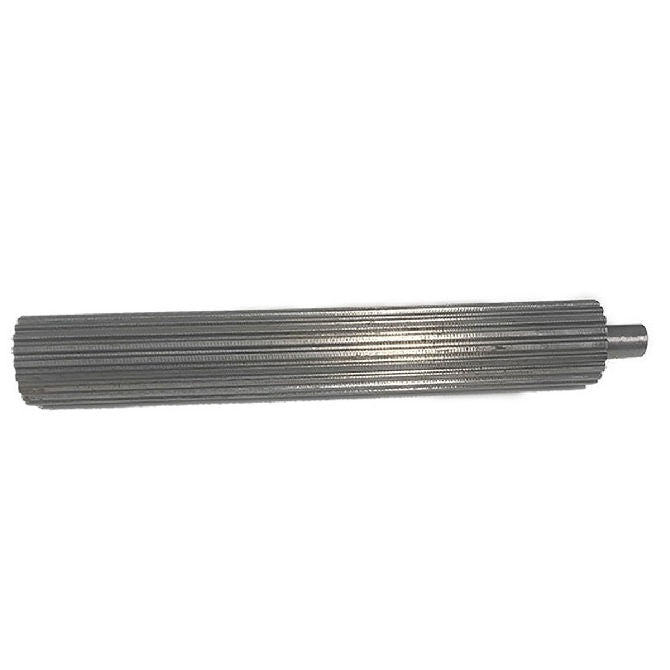

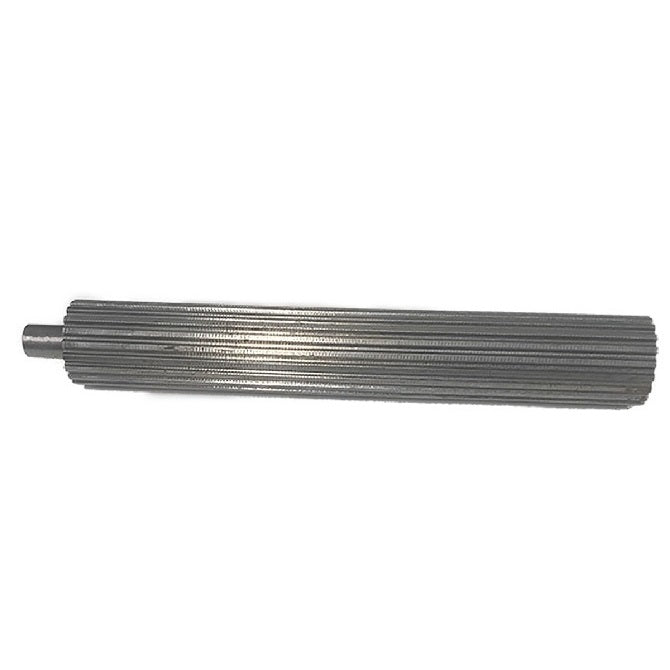

Pulleys - Inch Timing Stock - 12.700mm Pitch H - Carbon SteelCarbon Steel 12.700mm Pitch H Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 30
- Min. Usable Length (L)
250.0
mm
(Equiv. 9.843 in.) - Pitch Diameter (PD)
121.22
mm
(Equiv. 4.772 in.) - Outside Diameter (OD) 119.91 mm
- Shank Diameter (D1) 25.40 mm
- Shank Length (Sl) 25.4 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 30H-PS10S
- 30HPS10S
