GR-V24-06-0305-06-N - Datasheet
MBA
Category Information

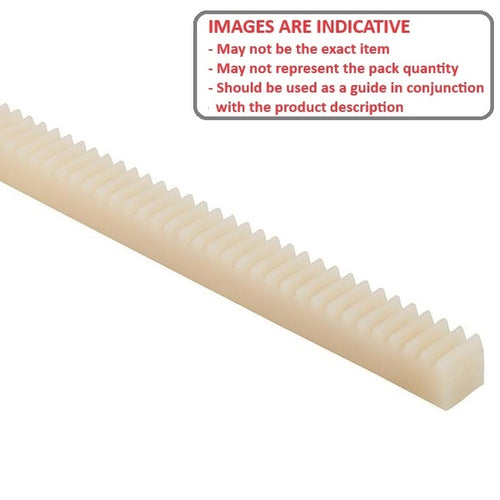

Gears - Rack - Imperial - 24DP - PlasticPlastic 24DP Imperial Rack Gears. 14.5 Degree Pressure Angle. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- 24 DP. Approx 3.33mm between teeth.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data

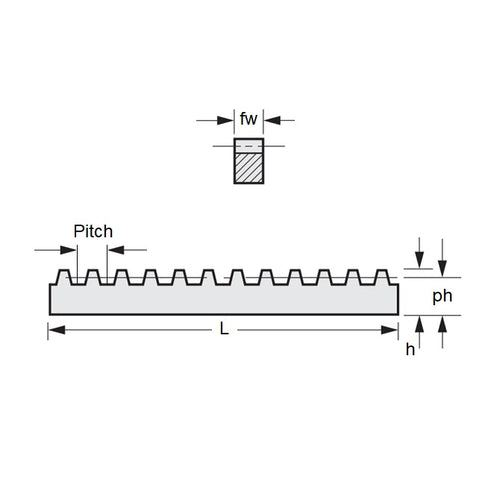

- Length (L)
:
304.80
mm
(Equiv. 12 in.) - Face Width (fw)
6.350
mm
(Equiv. 0.25 in.) - Height (h)
6.350
mm
(Equiv. 0.25 in.) - Pitch Type 24DP - 14.5 PA
- Pitch Height (ph) 5.159 mm
- Pressure Angle 14.5 °
- Precision Commercial
- Mounting Holes None
- Shape Square
- Material Nylon 101
Product Compliance and Data
Additional Resources
Cross References
- R24P14-12P
- R24P1412P
- A1N12-N24
- A1N12N24
