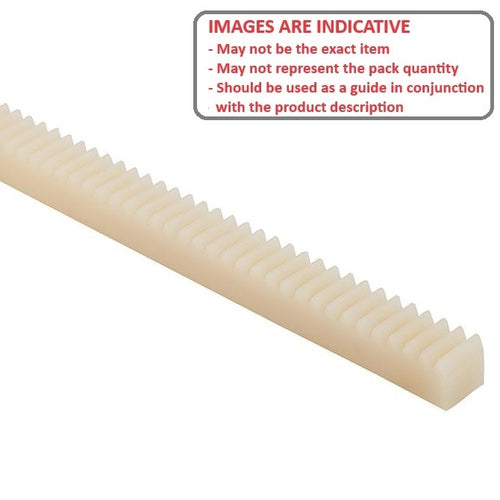

GR-V32-05-0305-05-N - Datasheet
MBA
Category Information
Gears - Rack - Imperial - 32DP - PlasticPlastic 32DP Imperial Rack Gears. 14.5 Degree Pressure Angle. Nylon. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- 32 DP. Approx 2.49mm between teeth.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
304.80
mm
(Equiv. 12 in.) - Face Width (fw)
4.762
mm
(Equiv. 0.187 in.) - Height (h)
4.762
mm
(Equiv. 0.187 in.) - Pitch Type 32DP - 14.5 PA
- Pitch Height (ph) 3.970 mm
- Pressure Angle 14.5 °
- Precision Commercial
- Mounting Holes None
- Shape Square
- Material Nylon 101
Product Compliance and Data
Additional Resources
Cross References
- R32P1412P
- R32P14-12P
- A1N12-N32
- A1N12N32
