GR-V48-03-0305-03-N - Datasheet
MBA
Category Information

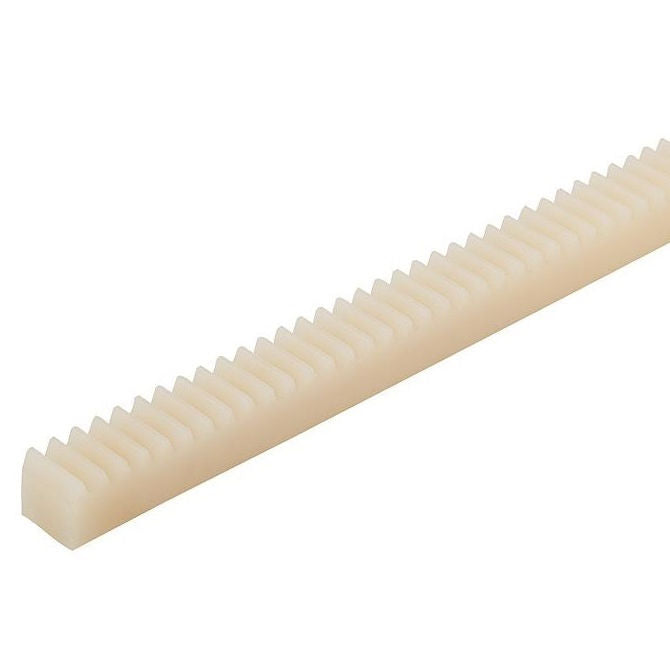

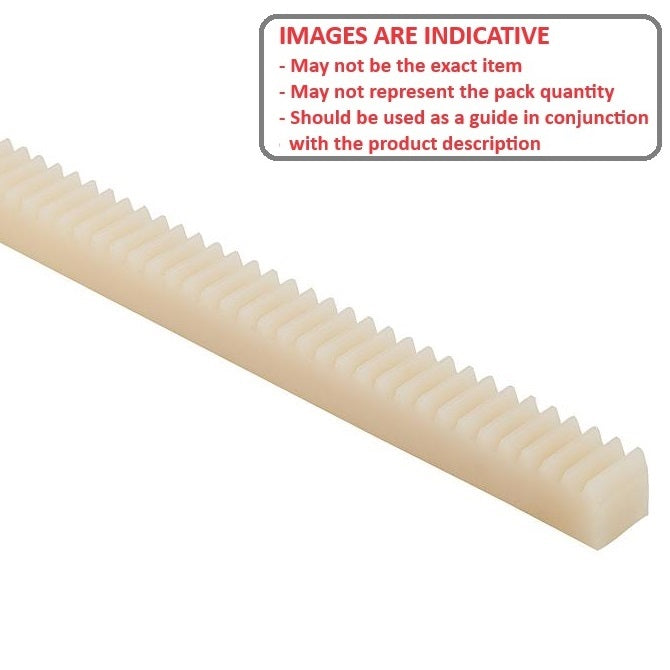

Gears - Rack - Imperial - 48DP - PlasticPlastic 48DP Imperial Rack Gears. 14.5 Degree Pressure Angle. Nylon. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 48 DP. Approx 1.66mm between teeth.
Product Data
- Length (L)
:
304.80
mm
(Equiv. 12 in.) - Face Width (fw)
3.175
mm
(Equiv. 0.125 in.) - Height (h)
3.175
mm
(Equiv. 0.125 in.) - Pitch Type 48DP - 14.5 PA
- Pitch Height (ph) 2.779 mm
- Pressure Angle 14.5 °
- Precision Commercial
- Mounting Holes None
- Shape Square
- Material Nylon 101
Product Compliance and Data
Additional Resources
Cross References
- R48P1412P
- R48P14-12P
- A1N12-N48
- A1N12N48
