AST-EZL-F-S3 - Datasheet
MBA
Category Information

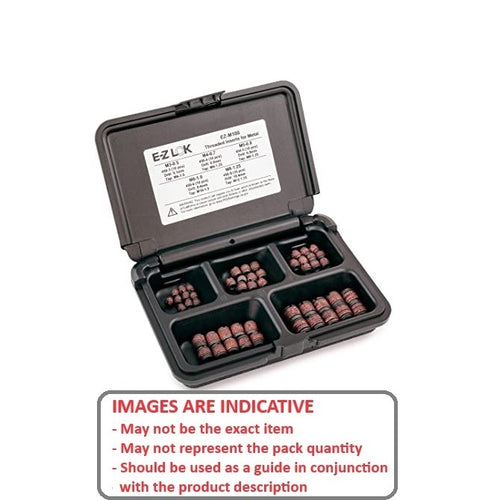

Thread Repair - Assortments - EZ LokEZ Lok Assortments Thread Repair. Contains a selection of E-Z Lok inserts
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data
- Type : Imperial UNF
- Description 5 Sizes 10-32 UNF to 1/2-20 UNF
- Contents 10 each 10-32, 1/4-28, 5/16-24, 3/8-24, 6 of 1/2-20
- Use In Ideal for soft metals, like aluminum, cast iron, and magnesium
- Info Install with standard drills and taps
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 90247A032
- EZ-F303
- EZF303
