RGEAB0.8-300-N - Datasheet
MBA
Category Information

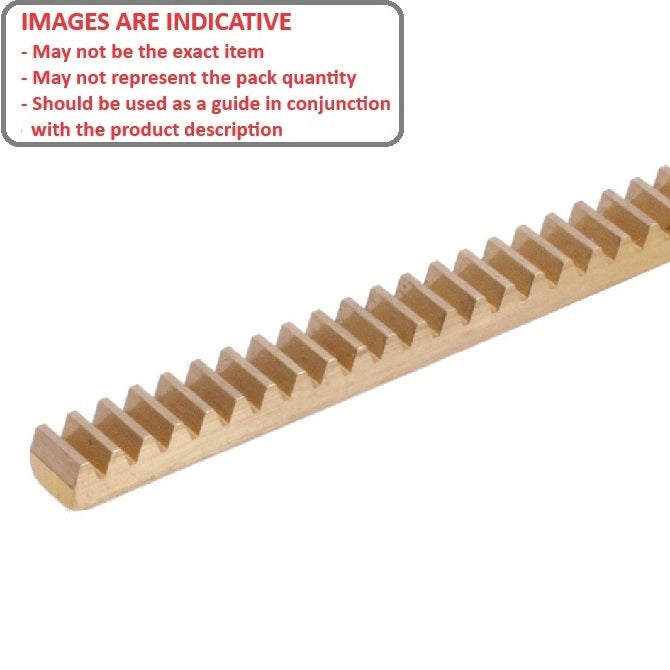

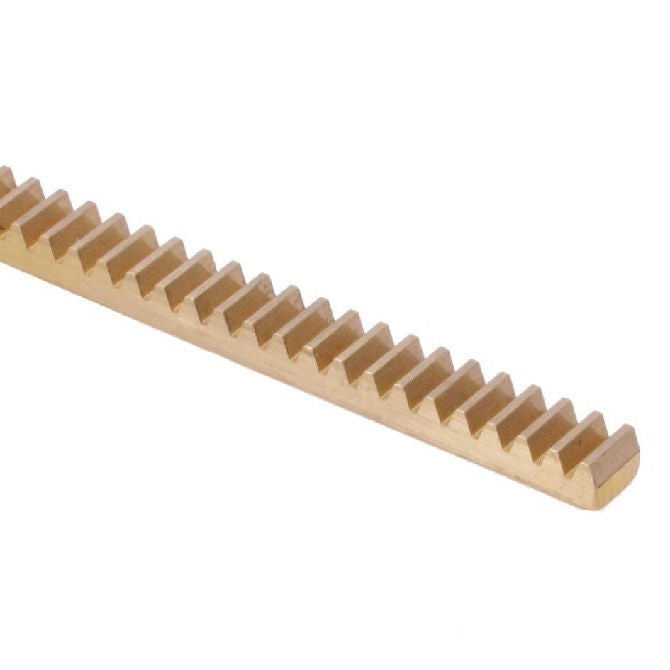

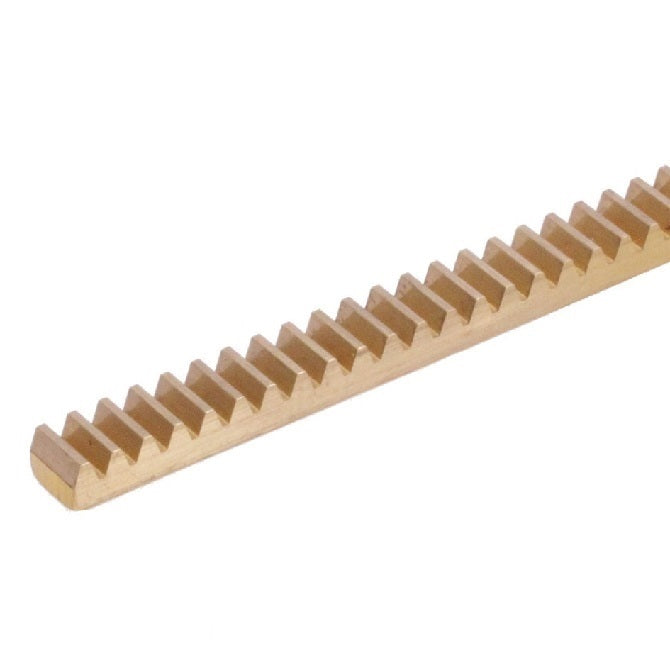

Gears - Rack - Metric - Module 0.8 - BrassBrass Module 0.8 Metric Rack Gears. 20 Degree Pressure Angle.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
301.590
mm
(Equiv. 11.874 in.) - Face Width (fw)
4.000
mm
(Equiv. 0.157 in.) - Height (h)
10.000
mm
(Equiv. 0.394 in.) - Pitch Type Module 0.8
- Pressure Angle 20 °
- Precision ISO CuZn39Pb3
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- Misumi RGEAB0.8-300-N
- RGEAB08300N
