AD-2530 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 30.0 mm
      (Equiv. 1.181 in.)
    • Thread (C) M25x1.5 (25.0mm)
    • Length (A) 168.0 mm
      (Equiv. 6.614 in.)
    • Shaft Size (D) 8.0 mm
    • Max. Effective Mass 480 Kg
    • Max. Nm Per Cycle 95 Nm
    • Max. Nm Per Hour 60000 Nm
    • Max Impact Speed 3.5 m/s
    • Weight 365 g
    • Body Length (B) 118.5 mm
    • Tip Diameter (C) 22.0 mm
    • Tip Length (E) 19.5 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

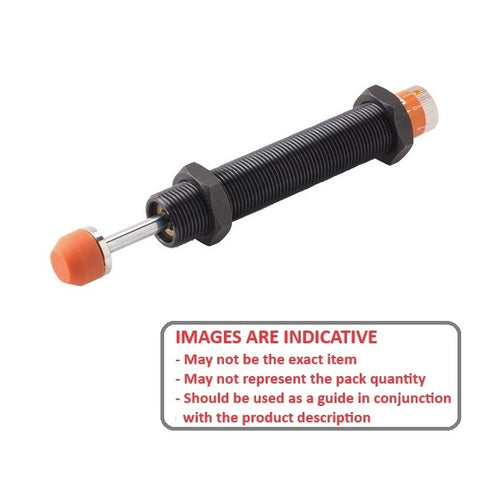

      AD-2530DiagramAD-2530Image
