BD-XL-0030-0095-NFB - Datasheet
MBA
Category Information

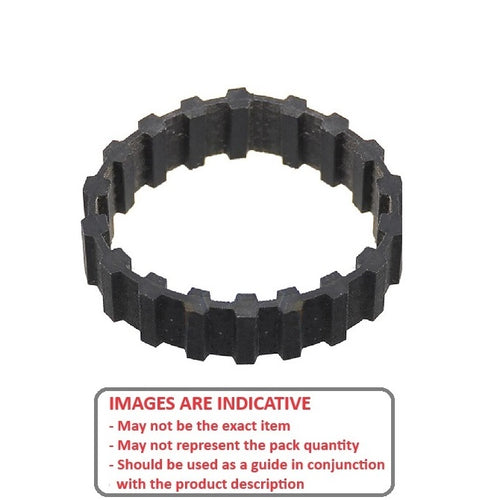

Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Double SidedDouble Sided 9.5mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch - Double Sided.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

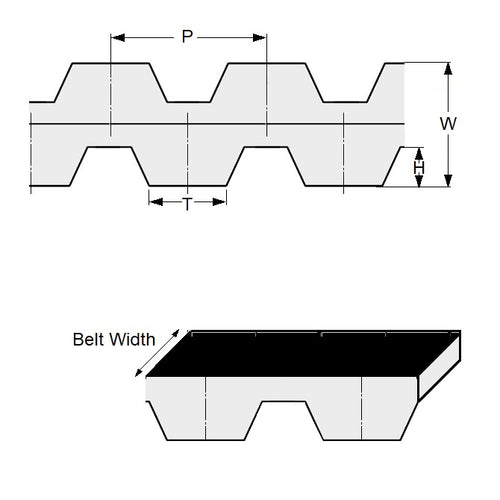

- Tooth Length (T) - 1.4mm
- Tooth Height (H) - 1.2mm
- Belt Height (W) - 3mm - Corner Radii ( r ) - 0.4mm
- Pitch (P) - 5.08mm (0.2 inch)
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 30
- Length
152.4
mm
(Equiv. 6 in.) - Width
9.5
mm
(Equiv. 0.374 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 1505 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Tooth Angle (A) 50 °
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 60DXL037
- A6R3-D030037
- A6R3MD030095
- A6R3D030037
- A 6R 3MD030095
