NART30VUUR - Datasheet

MBA

Category Information

Rollers - Track - With Inner Race

With Inner Race Track Rollers. This is the main category in this series

    Product Data

    • ID (d) : 30.00 mm
    • O.D. (D) 62.00 mm
    • Width (C) 28.00 mm
    • Inner Ring Width (B) 29.00 mm
    • OD Type Radius (500mm)
    • Dynamic Load Rating 6110.00 kgf
    • Static Load Rating 11300.00 kgf
    • Closures Shields with Seal
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® NART-30VUUR
      • NART30VUUR
      View full details

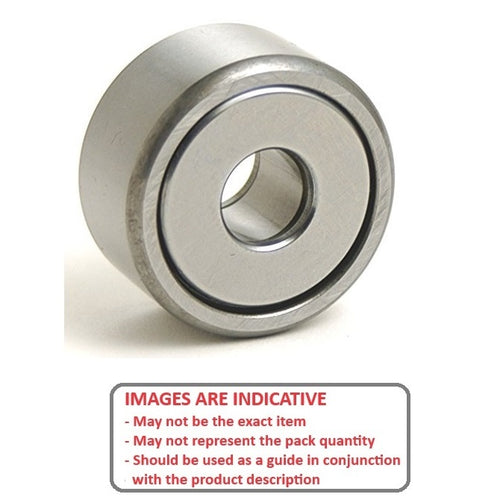

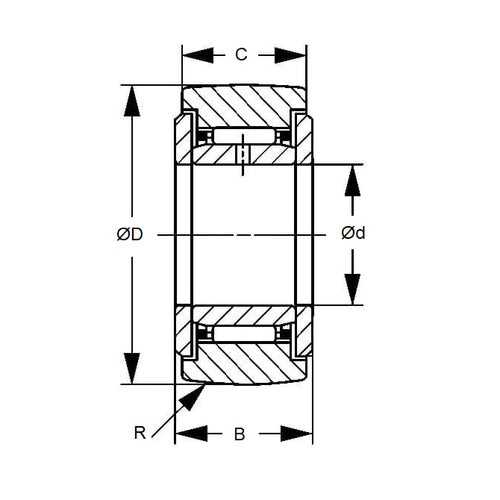

      NART30VUURDiagramNART30VUURImage
