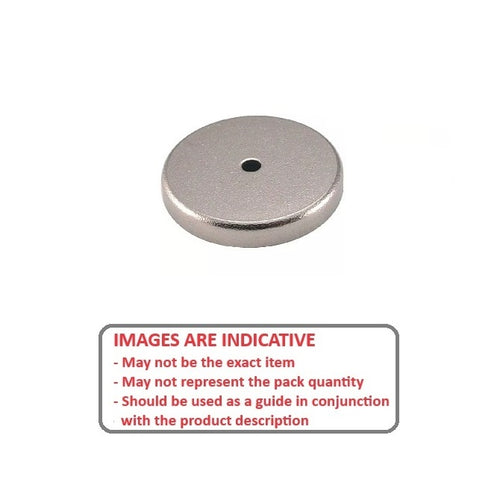

MAG-CP-030-05-03-H - Datasheet
MBA
Category Information
Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

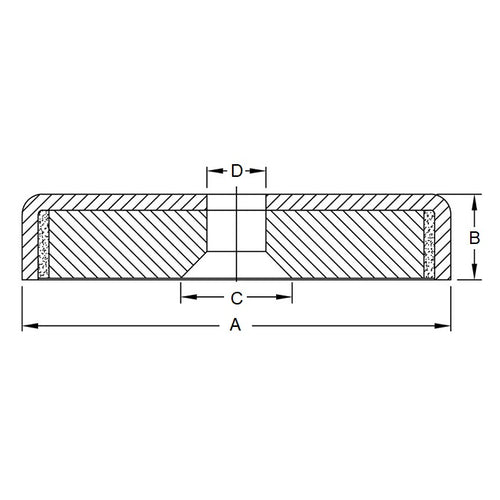

- Diameter (A)
:
30.48
mm
(Equiv. 1.2 in.) - Thickness (B)
4.75
mm
(Equiv. 0.187 in.) - Hole Recess (C)
3.18
mm
(Equiv. 0.125 in.) - Hole Top Diameter (D) 3.18 mm
- Holding Value 2 Kg
Product Compliance and Data
Additional Resources
Cross References
- CMA-82
- CMA82
