COL-03000-045-12-NY - Datasheet
MBA
Category Information

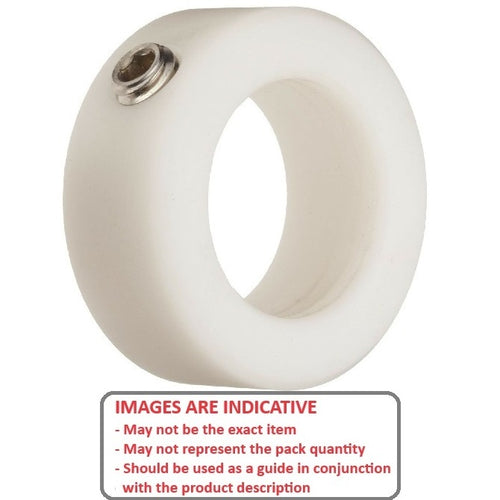

Collars - Shaft - Standard - NylonNylon Standard Shaft Collars. Standard one piece nylon shaft collar with set screw
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
30.000
mm
+ 0.000 / + 0.033
(Equiv. 1.181 in.) - Outside Diameter (D)
45.00
mm
(Equiv. 1.772 in.) - Overall Width (S)
12.0
mm
(Equiv. 0.472 in.) - Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- COL0300004545NY
