CMF030-30-080M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male to Female

Male to Female Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 30.00 mm
  • Body Height (H) 30.00 mm
  • Thread Size M8x1.25
  • Shore Hardness 60
  • Thread Length/Depth (L1/L2) 20.0 / 8.0 mm
  • Max Shear Load 706 Kg (lbs)
  • Configuration Male to Female
  • Other Info 112.00
  • Material Natural Rubber
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-VD3030-20
  • CVD303020
View full details

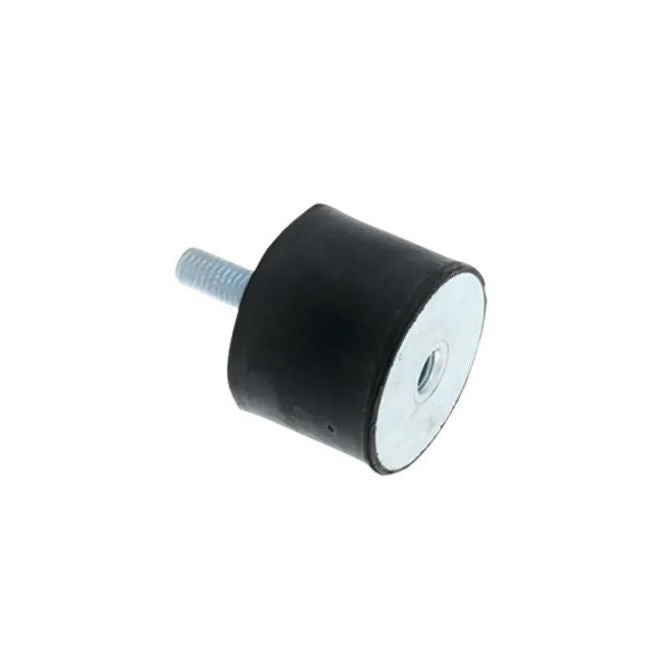

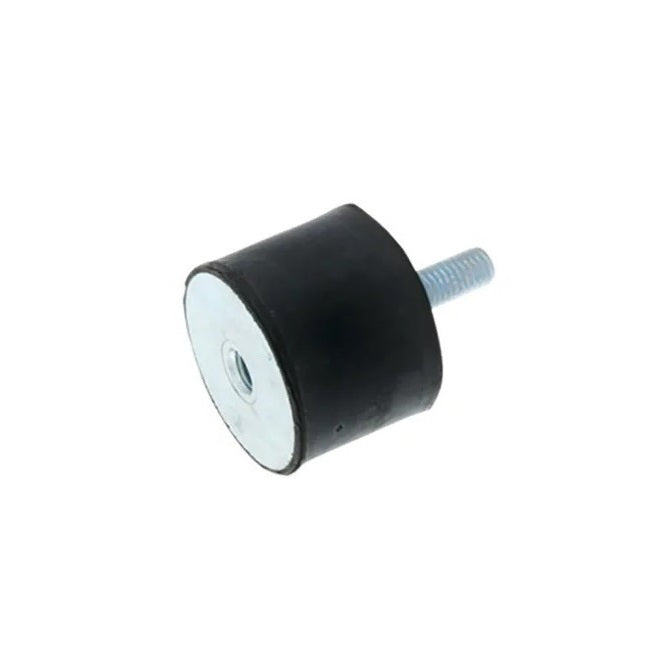

CMF030-30-080M-R60DiagramCMF030-30-080M-R60Image
