CMBC030-30-060M - Datasheet

MBA

Category Information

Mounts - Buffer - Male - Conical

Conical Male Buffer Mounts. Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 30.00 mm
    (Equiv. 1.181 in.)
  • Body Length (H) 30.00 mm
    (Equiv. 1.181 in.)
  • Thread Size M6x1
  • Shore Hardness 60
  • Thread Length (L1) 14.0 mm
  • Max Shear Load 310 Kg (lbs)
  • Configuration Cone - Male
  • Other Info 49.00
  • Material Natural Rubber
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-VP3030-14
  • CVP303014
View full details

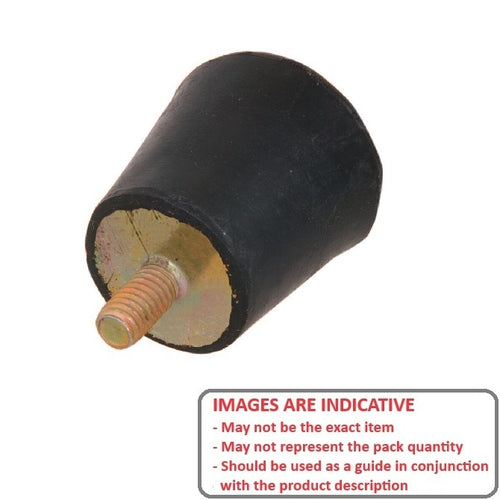

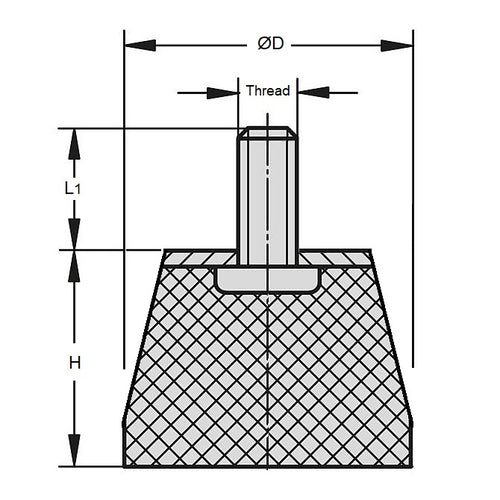

CMBC030-30-060MDiagramCMBC030-30-060MImage
