CMBC030-41-079C - Datasheet

MBA

Category Information

Mounts - Buffer - Male - Conical

Conical Male Buffer Mounts. Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 30.2 mm
  • Body Length (H) 41.3 mm
  • Thread Size 5/16 UNC (18 TPI)
  • Shore Hardness 60
  • Thread Length (L1) 15.9 mm
  • Configuration Male to Blank Conical
  • Material Natural Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® VM-130-1
  • VM1301
View full details

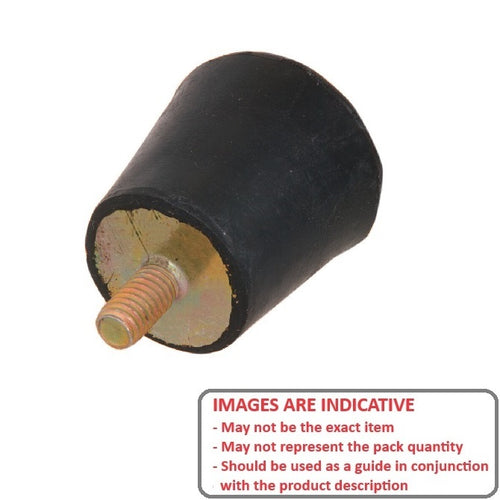

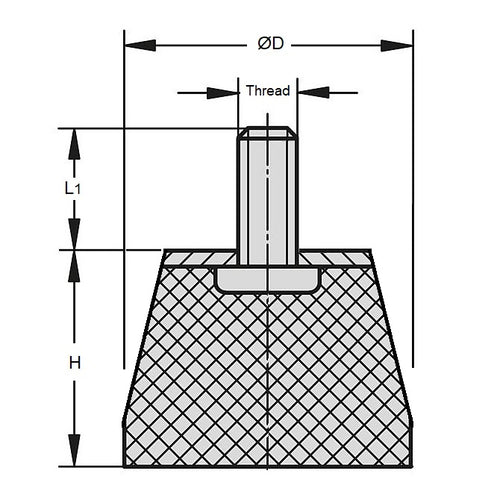

CMBC030-41-079CDiagramCMBC030-41-079CImage
