RPI-301-302-C - Datasheet

MBA

Product Data

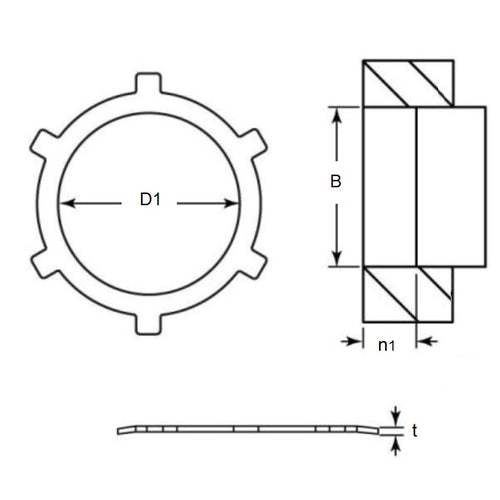

• Housing Bore (B) Min : 30.10 mm
• Housing Bore (B) Max 30.20 mm
• Inside Clearance (D1) 22.23 mm _{+ / - 0.26}
  (Equiv. 0.875 in.)
• Thickness (t) 0.38 mm +/- 0.06
• Recommended Depth (n1) 1.52 mm
• Thrust Load 968 kg.cm
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• 98435A145
• Huyett® TI-112
• NoCor® TI-112
• TI112
• N1305-0118APP
• N1305-0118-APP
• N13050118APP
