IP-168RS - Datasheet
MBA
Category Information

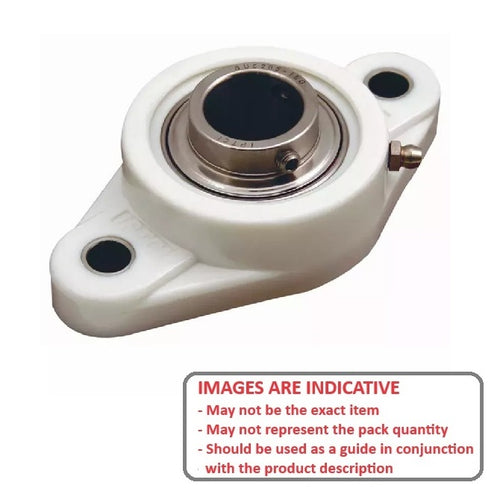

Housing Assembly - Flanged 2 Bolt - Non Aligning - Plastic and Stainless SteelPlastic and Stainless Steel Non Aligning Flanged 2 Bolt Housing Assembly. Thermoplastic housed units offer a more favourable economic choice. Stainless steel bearings offer a high level of corrosion resistance and all metal parts are made from either 302, 304 or 440C stainless steel.
- An expanded range may be available on special order. Please enquire.
- Operating temperature minus 20 oC to +95 deg C
- Thermoplastic hosuings are offwhite and are made from glass reinforced PBT resin. Favourable chemical resistance. Very resistant to moisture absorption.
- Excellent mechanical, thermal and electrical properties.
- All sleeves, bushings and grease fittings are 300 grade stainless steel.
- Food Grade
Product Data

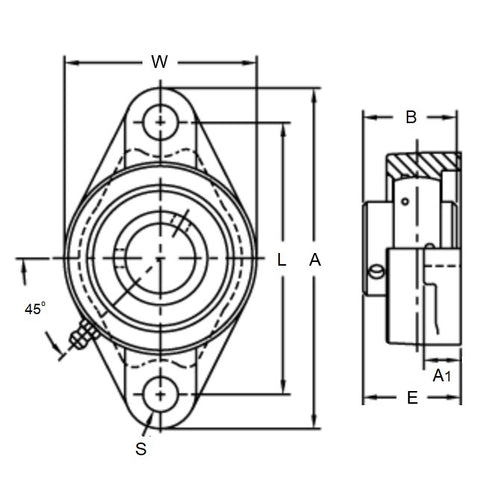

- Nominal Shaft Size
:
30.000
mm
(Equiv. 1.181 in.) - Width (W)
40.900
mm
(Equiv. 1.61 in.) - Overall Length (A)
148.000
mm
(Equiv. 5.827 in.) - Overall Height (E) 40.900 mm
- Base Height (D) 13.000 mm
- Material Thermoplastic and Chrome Stainless Steel
