Miniature Bearings Australia
SP1-127-078TL-030-2012-C - Datasheet
MBA
Category Information

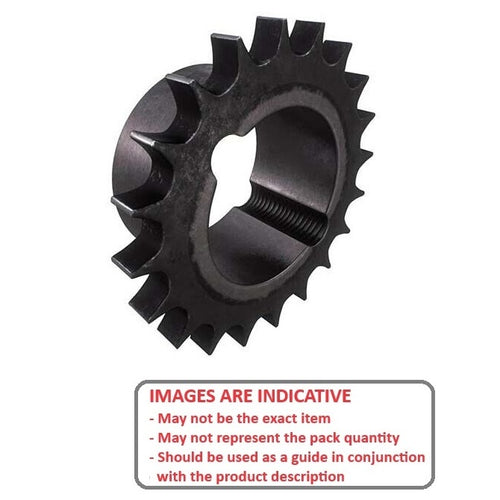

Sprockets - Roller Chain - Simplex - 08B - TaperlockTaperlock 08B Simplex Roller Chain Sprockets. Match with 12.70x7.75mm simplex chain (08B BS)
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Taperlock Bored sprockets need to be matched up with a taperlock bush to obtain the correct bore size.
- British Standard 08B - 1/2 inch
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 30
- PCD
121.23
mm
(Equiv. 4.773 in.) - Standard Number 08B-1
- Type / Rows Type 3 / Tapered Bore
- Suits Bush Number 2012 Bush
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Sprocket 08B-1T/B-30T
- 3753N155
- SP1127078TL030PBC
