UFL006N - Datasheet
MBA
Category Information

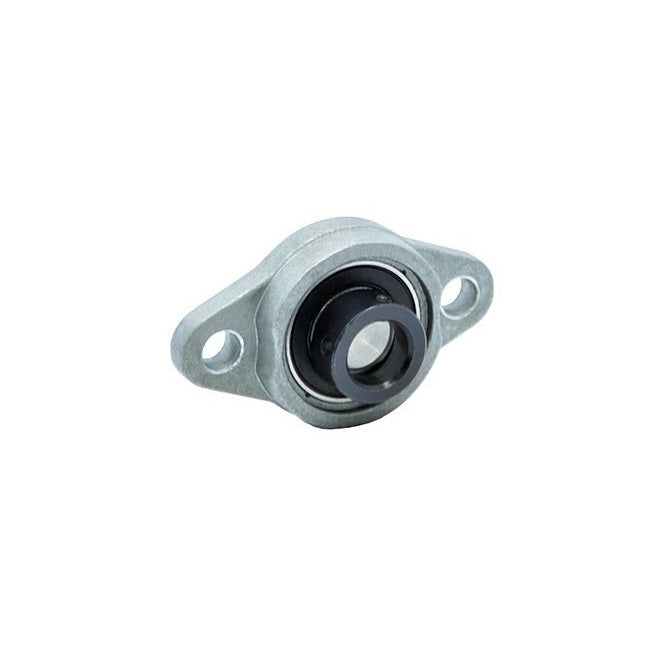

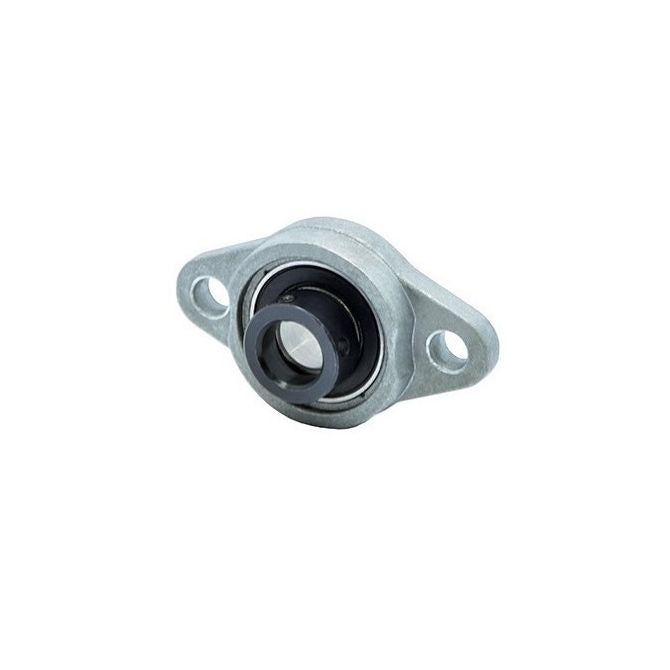

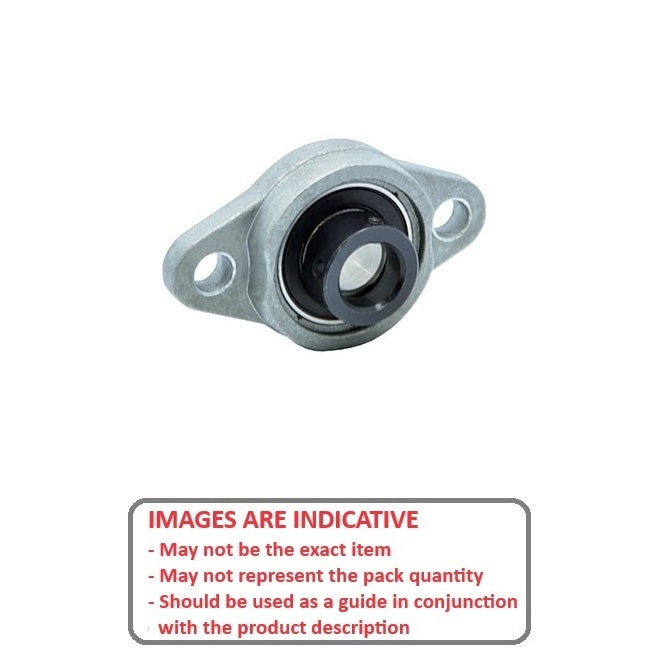

Housing Assembly - Flanged 2 Bolt - Non Aligning - AluminiumAluminium Non Aligning Flanged 2 Bolt Housing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
- An expanded range may be available on special order. Please enquire.
Product Data

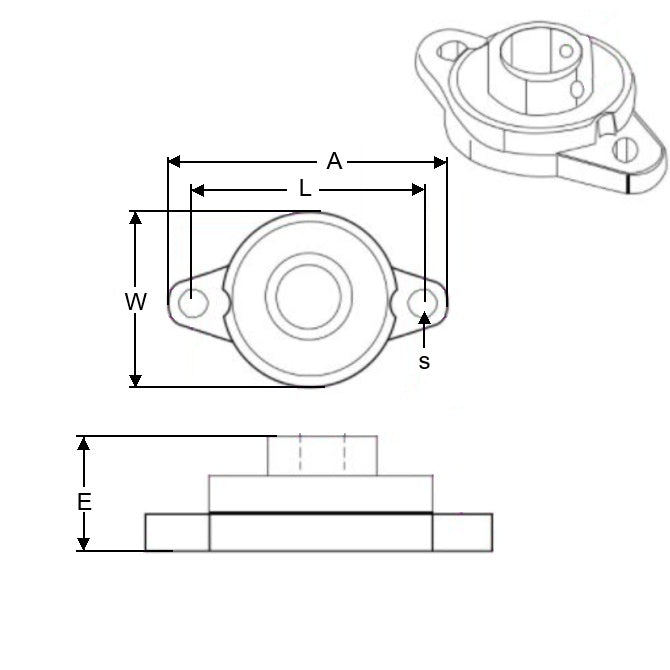

- Nominal Shaft Size
:
30.0
mm
(Equiv. 1.181 in.) - Width (W)
70.0
mm
(Equiv. 2.756 in.) - Overall Length (A)
112.0
mm
(Equiv. 4.409 in.) - Overall Height (E) 29.0 mm
- Bolt Hole Size (s) 13.0 mm
- Bolt Hole Centres (L) 85.0 mm
- Material Aluminium
