COL-03000-055-15-2C-AL - Datasheet

MBA

Category Information

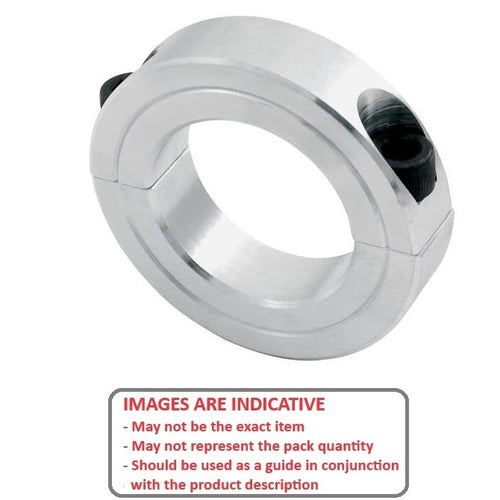

Collars - Shaft - Clamp Type - Two Piece - Aluminium

Aluminium Two Piece Clamp Type Shaft Collars. This is the main category in this series

  • Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
  • Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.

Product Data

  • Suitable Shaft Size (d) : 30.000 mm + 0.01 / + 0.05
    (Equiv. 1.181 in.)
  • Outside Diameter (D) 55.00 mm
    (Equiv. 2.165 in.)
  • Overall Width (S) 15.0 mm
    (Equiv. 0.591 in.)
  • Material Aluminium
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-SCNPAW30-15
  • CSCNPAW3015
