COL-03000-055-15-1C-AL - Datasheet
MBA
Category Information

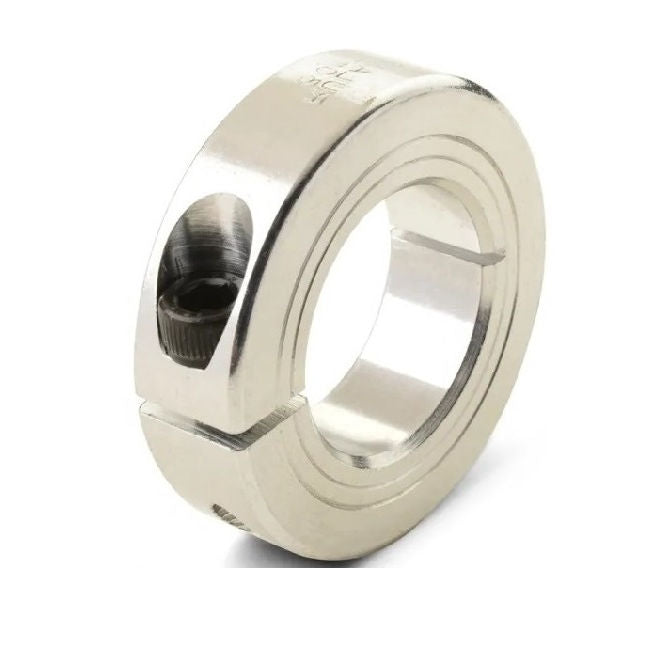

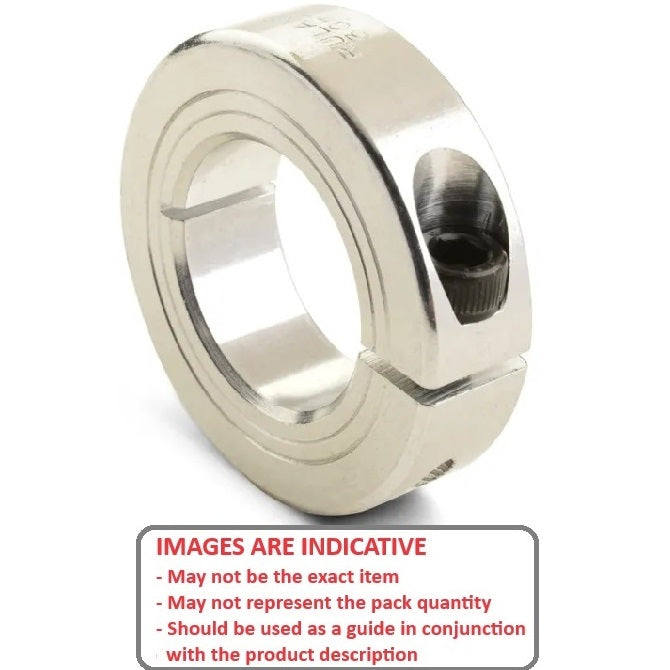

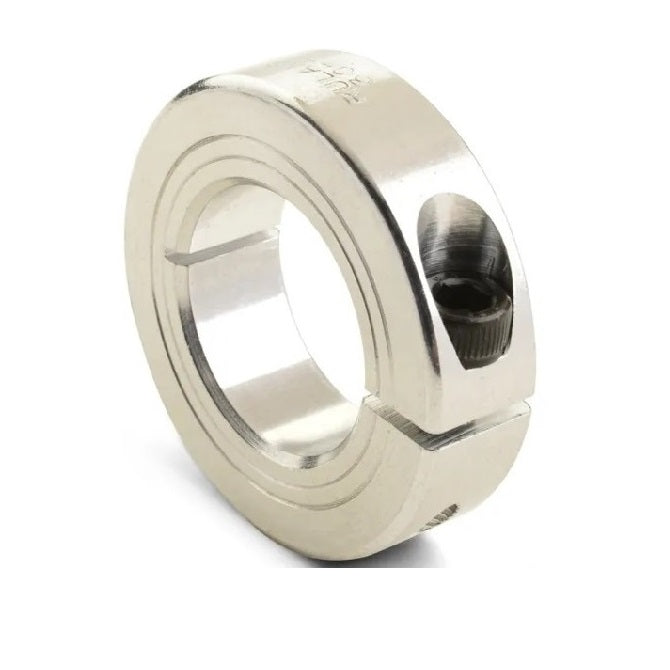

Collars - Shaft - Clamp Type - One Piece - AluminiumAluminium One Piece Clamp Type Shaft Collars. This is the main category in this series
Product Data

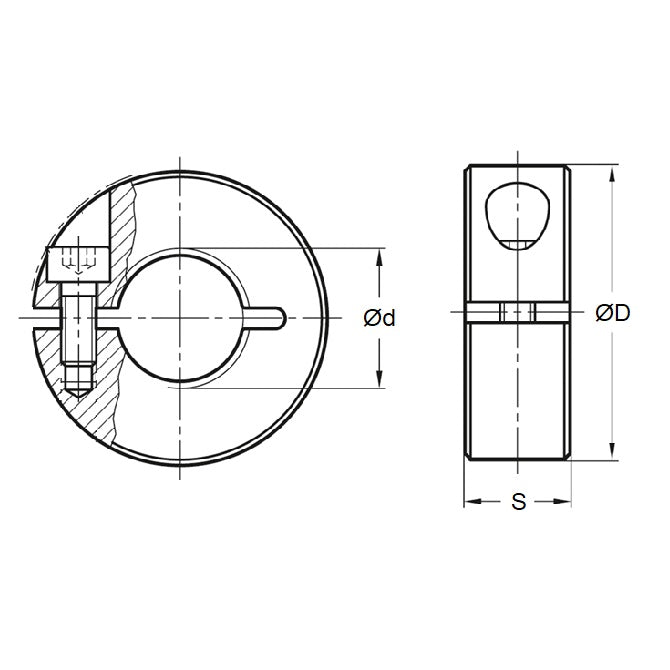

- Suitable Shaft Size (d)
:
30.000
mm
+ 0.01 / + 0.05
(Equiv. 1.181 in.) - Outside Diameter (D)
55.00
mm
(Equiv. 2.165 in.) - Overall Width (S)
15.0
mm
(Equiv. 0.591 in.) - Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-SCSAW30-15
- CSCSAW3015
