P-XL-030-100A - Datasheet
MBA
Category Information

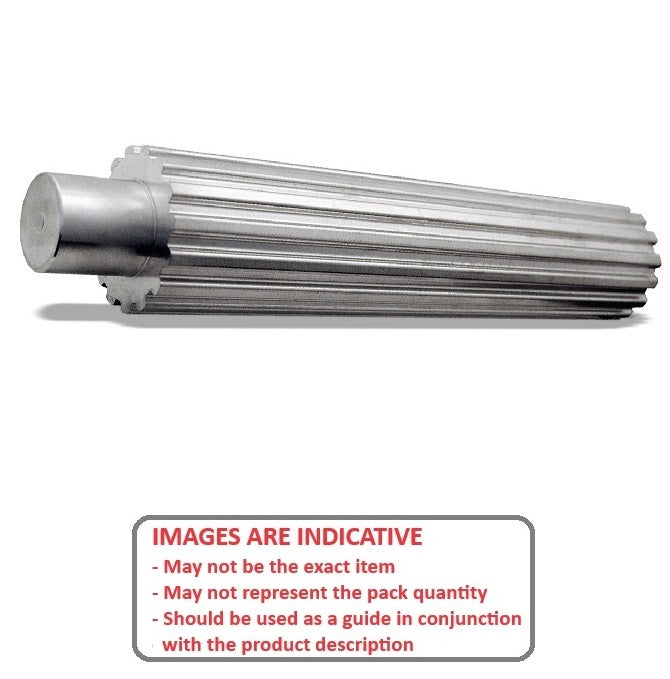

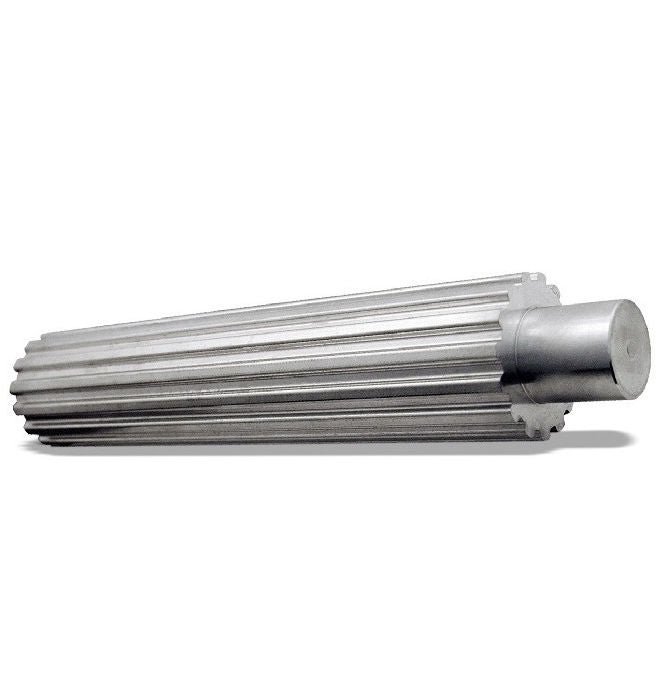

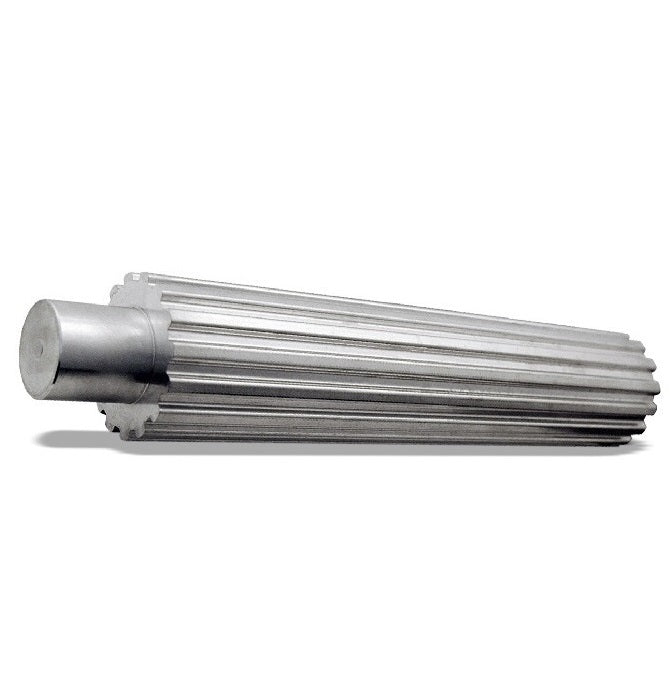

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - AluminiumAluminium 5.080mm Pitch XL Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 30
- Min. Usable Length (L)
100.0
mm
(Equiv. 3.937 in.) - Pitch Diameter (PD)
48.51
mm
(Equiv. 1.91 in.) - Outside Diameter (OD) 48.00 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Misumi BXL30
