TR-300-320-090-S3 - Datasheet
MBA
Category Information

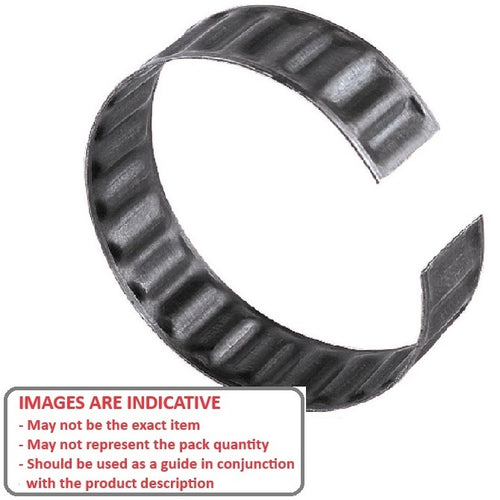

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

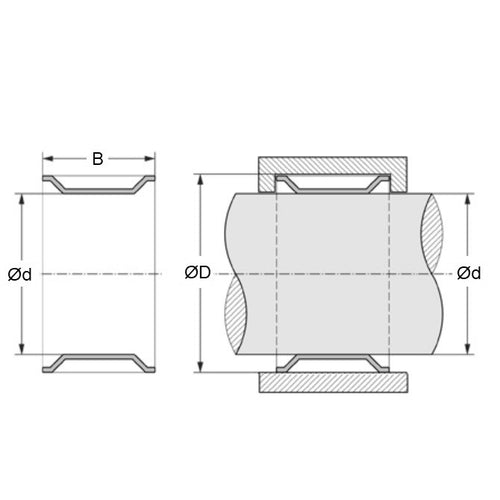

- Inner Part OD (d)
:
30.00 to 29.95
mm
(Equiv. 1.181 in.) - Housing ID (D)
31.98 to 31.9
mm
(Equiv. 1.259 in.) - Ring Width (B)
9.00
mm
(Equiv. 0.354 in.) - Outer Part ID (DT) mm 31.75 to 31.67 For Torque Transfer
- Max. Design Torque 31.07 N.m
- Style For bearing OD
- Max. Radial Load 4360 N
- Max. Design Thrust 2070 N
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
