CMBC030-41-M08 - Datasheet

MBA

Category Information

Mounts - Buffer - Male - Conical

Conical Male Buffer Mounts. Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 30.0 mm
  • Body Length (H) 41.0 mm
  • Thread Size M8x1.25
  • Shore Hardness 60
  • Thread Length (L1) 16.0 mm
  • Configuration Male to Blank Conical
  • Material Natural Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® VM-130-1M
  • VM1301M
View full details

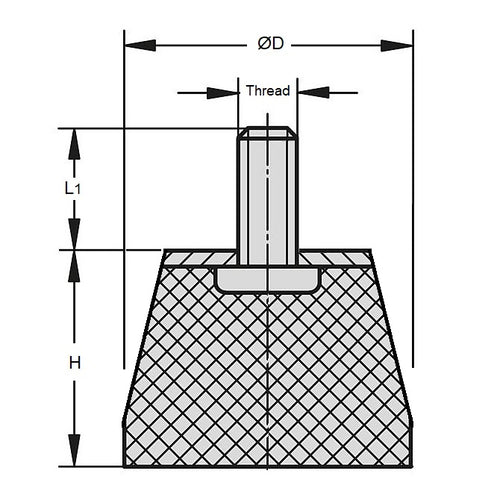

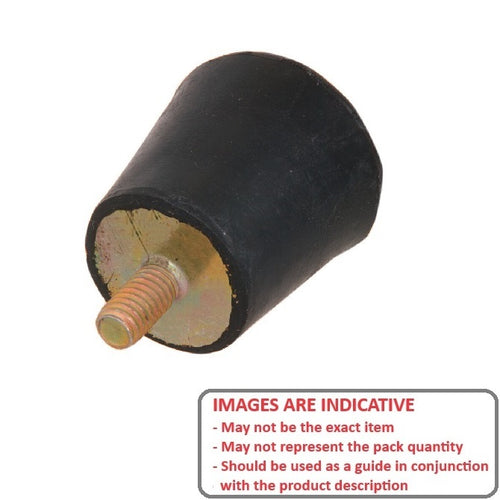

CMBC030-41-M08DiagramCMBC030-41-M08Image
