CFF030-40-080M-R45 - Datasheet
MBA
Category Information

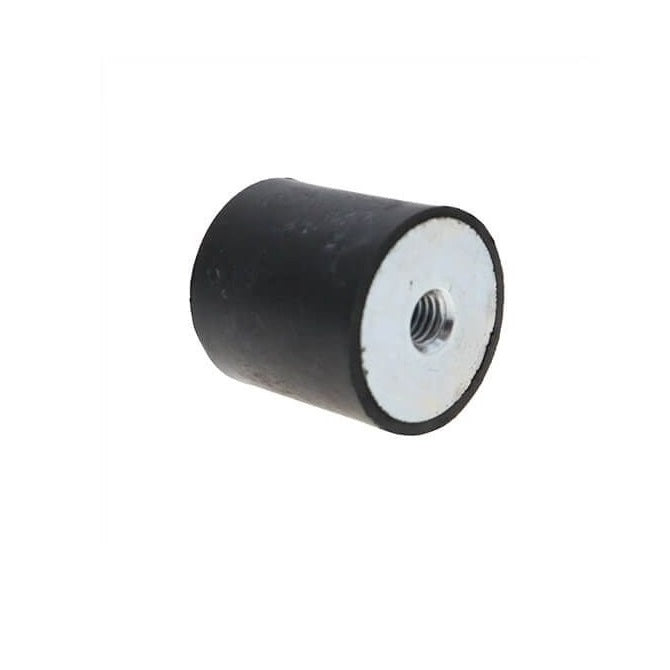

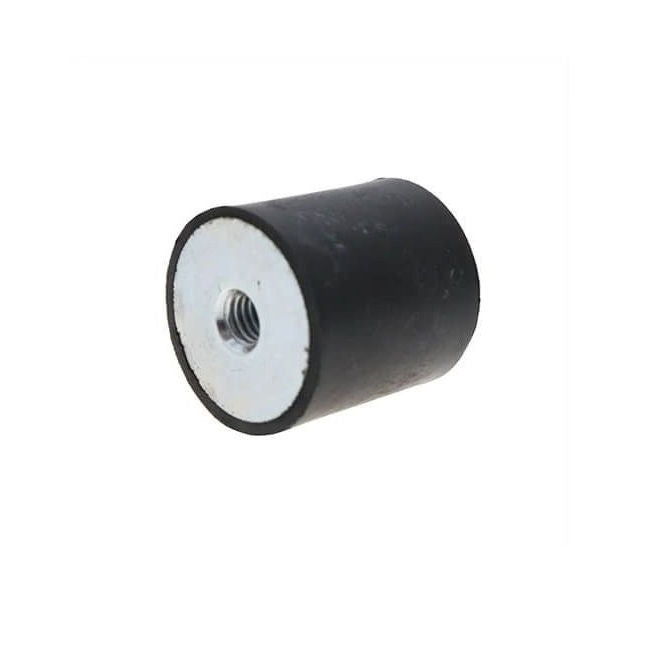

Mounts - Bobbin - FemaleFemale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
30.0
mm
(Equiv. 1.181 in.) - Body Height (H)
40.0
mm
(Equiv. 1.575 in.) - Thread Size M8x1.25
- Shore Hardness 45
- Compression Load 14.7 (31) Kg (lbs)
- Deflection 3.6 mm
- Configuration Female to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 3040FF08-45
- 3040FF0845
