Miniature Bearings Australia
CFB030-30-080M-R45 - Datasheet
MBA
Category Information

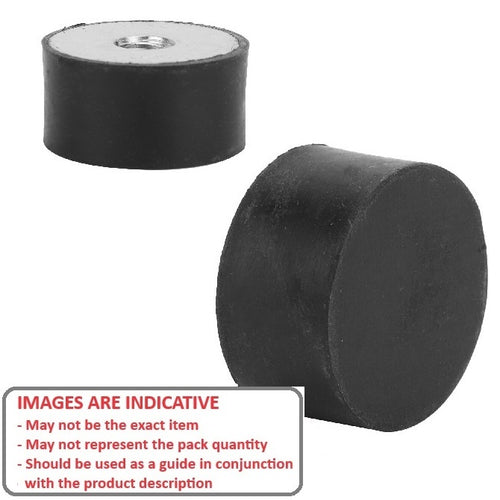

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D) : 30.0 mm
- Body Height (H) 30.0 mm
- Thread Size M8x1.25
- Shore Hardness 45
- Compression Load 53.5 Kg (lbs)
- Deflection 7.5 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 3030FFB0845
- 3030FFB08-45
