CMF030-30-080M20-R60 - Datasheet
MBA
Category Information

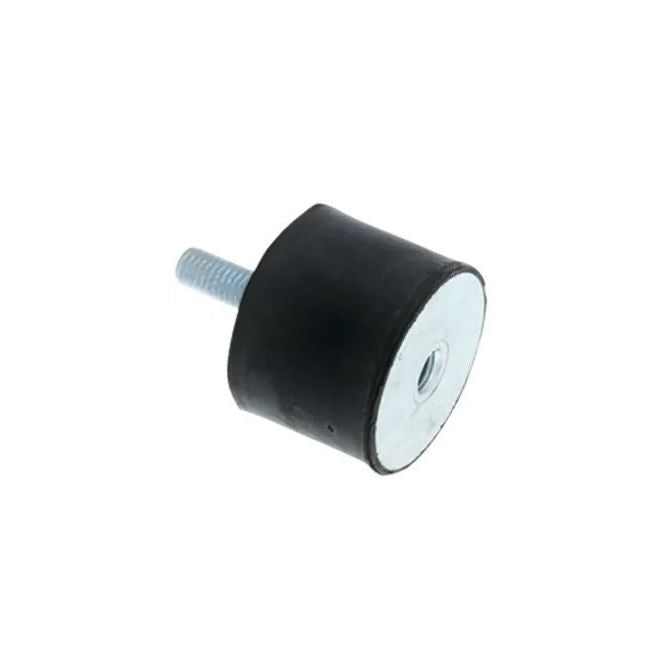

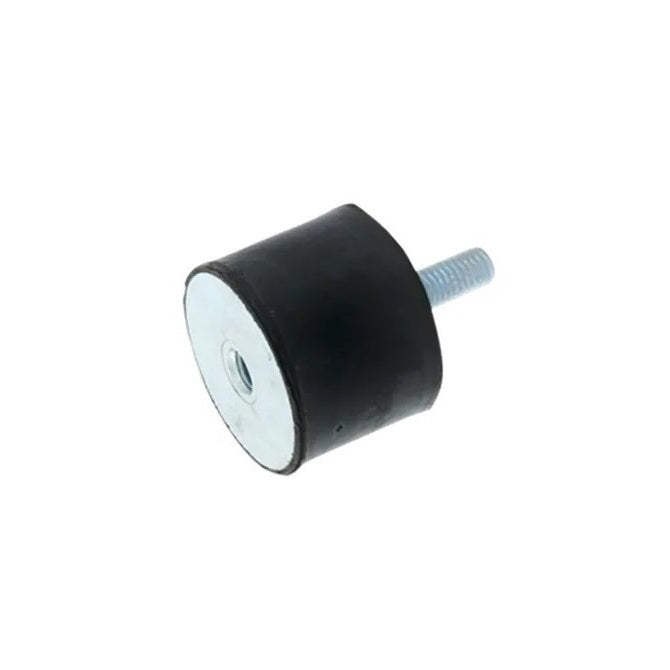

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nom. Body Diameter (D)
:
30.0
mm
(Equiv. 1.181 in.) - Body Height (H)
30.0
mm
(Equiv. 1.181 in.) - Thread Size M8x1.25
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 20.0 / 8.0 mm
- Compression Load 39 (83) Kg (lbs)
- Max Shear Load 7.1 (15.7) Kg (lbs)
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Trelleborg 20-00575
- 2000575
- 3030MF20-60
- 3030MF2060
- BZY83030
- B-ZY-8-30-30
