CMF030-25-080M-R40 - Datasheet
MBA
Category Information

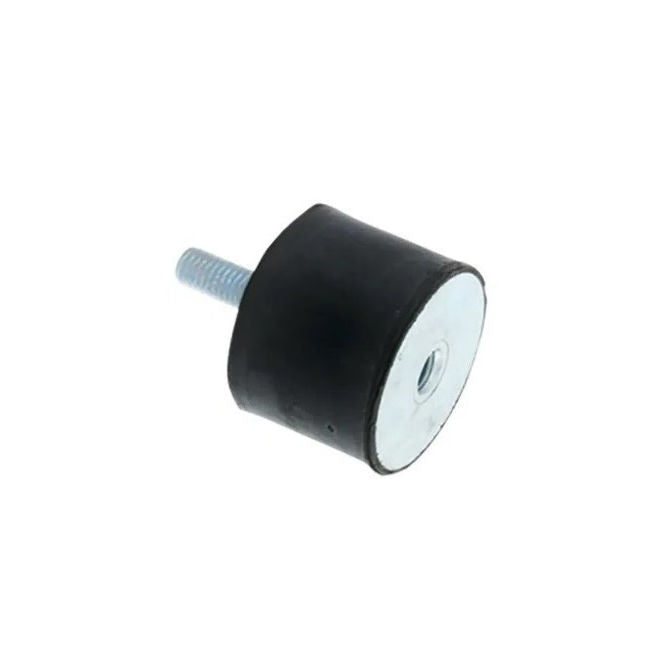

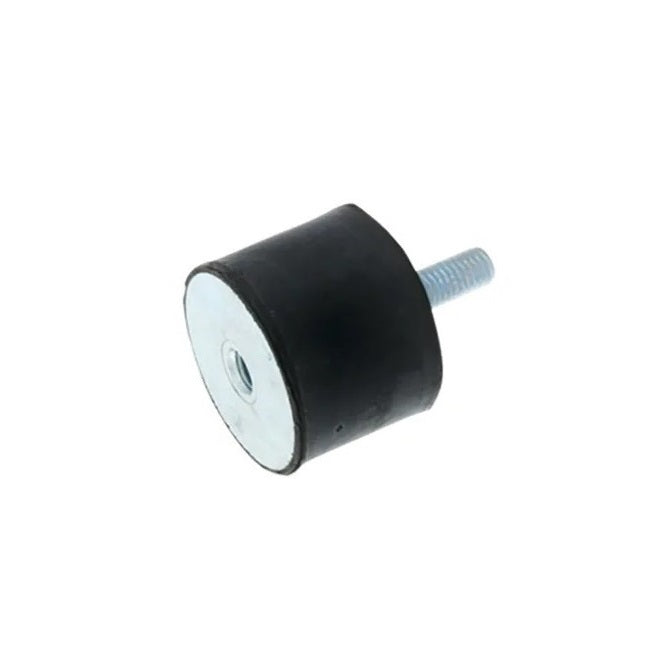

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Body Diameter (D)
:
30.0
mm
(Equiv. 1.181 in.) - Body Height (H)
25.0
mm
(Equiv. 0.984 in.) - Thread Size M8x1.25
- Shore Hardness 40
- Thread Length/Depth (L1/L2) 15.0 / 8.0 mm
- Compression Load 18 (39) Kg (lbs)
- Deflection 2.1 mm
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- AVI 3025MF15-40-M8
- 3025MF1540M8
