CFF030-25-080M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Female

Female Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 30.0 mm
    (Equiv. 1.181 in.)
  • Body Height (H) 25.0 mm
    (Equiv. 0.984 in.)
  • Thread Size M8x1.25
  • Shore Hardness 60
  • Compression Load 31 (66) Kg (lbs)
  • Deflection 2.1 mm
  • Max Shear Load 13.2 (29.5) Kg (lbs)
  • Configuration Female to Female
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Trelleborg 20-00475
  • Misumi C-DD3025-8
  • CZY83025
  • C-ZY-8-30-25
  • CZY83025(QtQ26745)
  • C-ZY-8-30-25-(Qt-Q-26745)
  • CDD30258
  • 2000475
View full details

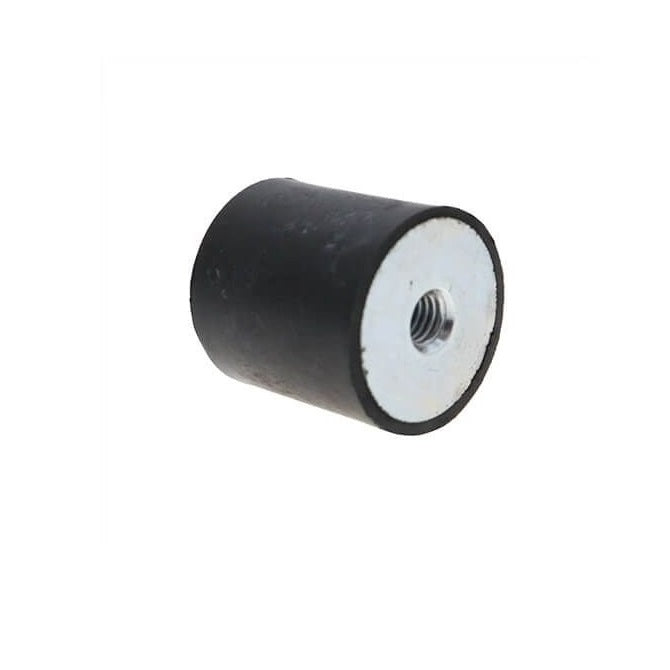

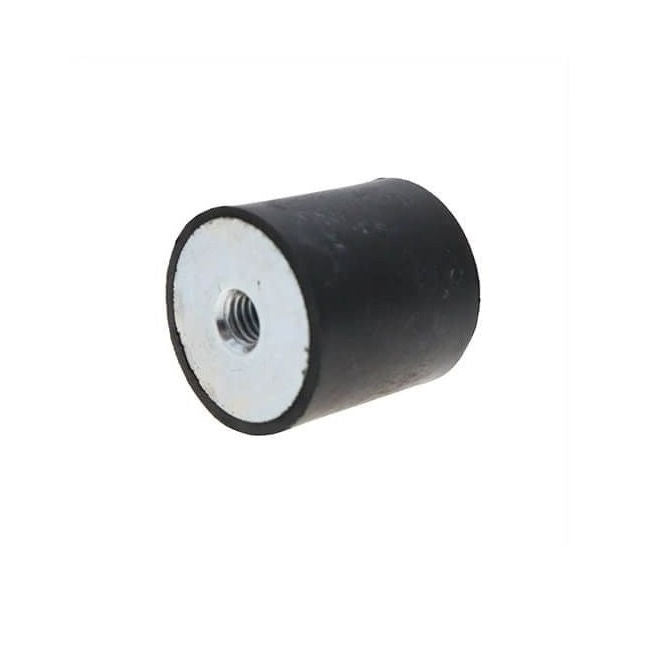

CFF030-25-080M-R60DiagramCFF030-25-080M-R60Image
